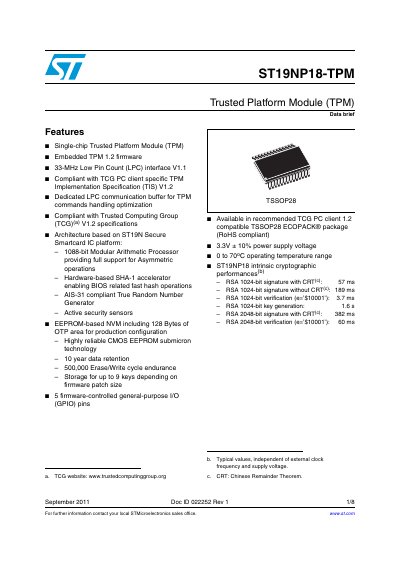

STMicroelectronics ST19NP18-TPM Trusted Platform Module Datasheet
The ST19NP18-TPM is a cost-effective Trusted Platform Module (TPM) designed to provide enhanced security and integrity mechanisms for PC platforms. It is based on the ST19N Secure Smartcard IC platform and includes embedded TPM 1.2 firmware compliant with TCG V1.2 specifications.
The device features an 8-bit CPU architecture, a Modular Arithmetic Processor (MAP), and a Secure Hash Accelerator to speed up cryptographic calculations such as RSA signatures and SHA-1 computations. It is available in a RoHS-compliant TSSOP28 package.
STMicroelectronics ST19NP18-TPM specifications
| TPM Version | 1.2 |
|---|---|
| Interface Standard | LPC V1.1 N |
| Package Type | TSSOP28 |
| Operating Temperature | 0 to 70°C |
| Supply Voltage | 3.3V + 10% |
| Data Retention | 10 year |
| Erase/Write Cycles | 500,000 |
| General-purpose I/O Pins | 5 |
Source: STMicroelectronics ST19NP18-TPM Trusted Platform Module Datasheet
All STMicroelectronics ST19NP18-TPM documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the ST19NP18-TPM?
The device operates within a temperature range of 0 to 70°C.
From: STMicroelectronics ST19NP18-TPM Trusted Platform Module Datasheet
Is the ST19NP18-TPM RoHS compliant?
Yes, it is provided in an ECOPACK® Level 3 package that guarantees RoHS compliance and is lead- and halogen-free.
From: STMicroelectronics ST19NP18-TPM Trusted Platform Module Datasheet
