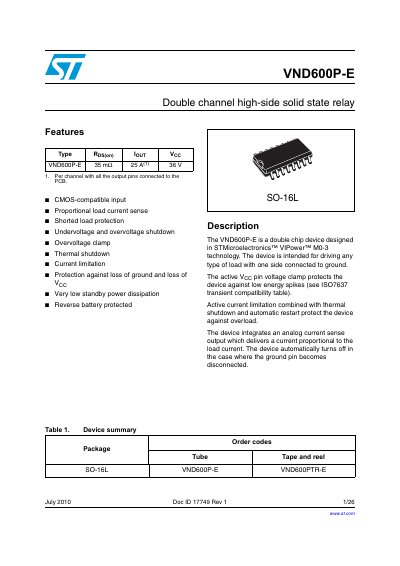

STMicroelectronics VND600P-E Datasheet
The VND600P-E is a double channel high-side solid state relay designed in STMicroelectronics ViPower MO0-3 technology. It is intended for driving loads with one side connected to ground, such as motors or solenoids.
The device features an analog current sense output proportional to the load current and includes comprehensive protection mechanisms including shorted load protection, undervoltage/overvoltage shutdown, thermal shutdown, and overvoltage clamping. It is available in a 16-pin SO-16L package.
STMicroelectronics VND600 specifications
| On-state resistance | 30 mΩ |
|---|---|
| Output current | 25 A |
| Package | PowerSO-10 |
| Operating temperature | -40 to 150 °C |
Source: STMicroelectronics VND600SP-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND600 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC supply voltage?
The absolute maximum rating for the DC supply voltage (Vcc) is 36 V.
Is the device CMOS-compatible?
Yes, the VND600P-E features a CMOS-compatible input.
What is the maximum DC supply voltage for this device?
The absolute maximum rating for the DC supply voltage (Vcc) is 4 V.
From: STMicroelectronics VND600SP-E Double Channel High-Side Driver Datasheet
Is the device reverse battery protected?
Yes, the device is reverse battery protected.
From: STMicroelectronics VND600 Double Channel High-Side Solid-State Relay Datasheet
What is the junction operating temperature range?
The junction operating temperature is internally limited.
From: STMicroelectronics VND600 Double Channel High-Side Solid-State Relay Datasheet
Does the device have thermal shutdown?
Yes, the device includes built-in thermal shutdown protection.
From: STMicroelectronics VND600SP Double Channel High-Side Solid State Relay Datasheet
