Start here

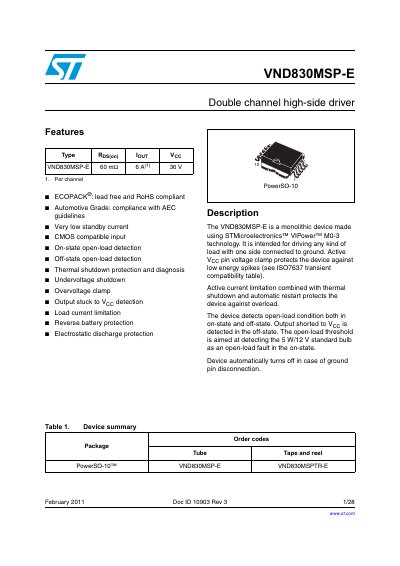

STMicroelectronics VND830MSP-E Double Channel High-Side Driver Datasheet
The VND830MSP-E is a monolithic double channel high-side driver designed for driving loads with one side connected to ground. It utilizes STMicroelectronics VIPower technology and is available in the PowerSO-10 package. The device is intended for automotive applications and complies with AEC-Q100 guidelines.
Read onlineSTMicroelectronics VND830MSP specifications
| On-state resistance | 60 mΩ |
|---|---|
| Operating supply voltage | 5.5 to 36 V |
| Undervoltage shutdown | 3 V |
| Overvoltage shutdown | 36 V |
| Package | PowerSO-10 |
Source: STMicroelectronics VND830MSP-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND830MSP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the on-state resistance of the VND830MSP-E?
The on-state resistance is 60 mΩ at 2 A output current and 8 V supply voltage.
From: STMicroelectronics VND830MSP-E Double Channel High-Side Driver Datasheet
Is the VND830MSP-E RoHS compliant?
Yes, the device is ECOPACK lead free and RoHS compliant.
From: STMicroelectronics VND830MSP-E Double Channel High-Side Driver Datasheet
What is the maximum DC supply voltage?
The absolute maximum rating for the DC supply voltage (Vcc) is 40 V.
From: STMicroelectronics VND830MSP Double Channel High-Side Driver Datasheet
Does this device detect open-load conditions?
Yes, it detects the open-load condition in both the on and off-state.
From: STMicroelectronics VND830MSP Double Channel High-Side Driver Datasheet
