Start here

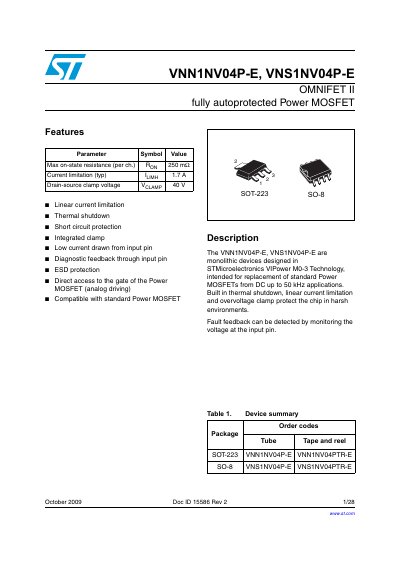

ST VNN1NV04P-E VNS1NV04P-E handbook
The VNN1NVO4P-E and VNS1NVO4P-E are monolithic OMNIFET II fully autoprotected Power MOSFETs designed for direct replacement of standard Power MOSFETs in applications from DC up to 50 kHz. These devices are built in STMicroelectronics VIPower MO-3 Technology and include features such as linear current limitation, thermal shutdown, short circuit protection, and an integrated overvoltage clamp to protect the chip in harsh environments.
The devices are available in SOT-223 and SO-8 packages. Key electrical characteristics include a maximum on-state resistance of 250 mΩ per channel, a typical current limitation of 1.7 A, and a drain-source clamp voltage of 40 V. Fault feedback can be detected by monitoring the voltage at the input pin, and the devices offer low current drawn from the input pin along with ESD protection.
STMicroelectronics VNN1NV04 specifications
| Max on-state resistance (perch.) | 250 mΩ |
|---|---|
| Current limitation (typ) | 1.7 A |
| Drain-source clamp voltage | 40 V |
| Operating junction temperature | Internally limited |
| Storage temperature | -55 to 150 °C |
| Total dissipation at Tj=25 °C | 8.3 W |
| Drain current | Internally limited |
| Reverse DC output current | -3 A |
All STMicroelectronics VNN1NV04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency for these MOSFETs?
These devices are intended for applications from DC up to 50 kHz.
How is fault feedback detected in these devices?
Fault feedback can be detected by monitoring the voltage at the input pin.
What is the maximum on-state resistance?
The maximum on-state resistance per channel is 250 mΩ.
From: STMicroelectronics VND1NV04/VNN1NV04/VNS1NV04 OMNIFET II Datasheet
What is the maximum on-state resistance per channel?
The maximum on-state resistance is 250 mΩ.
From: STMicroelectronics VND1NV04/VNN1NV04/VNS1NV04 OMNIFET II Datasheet
