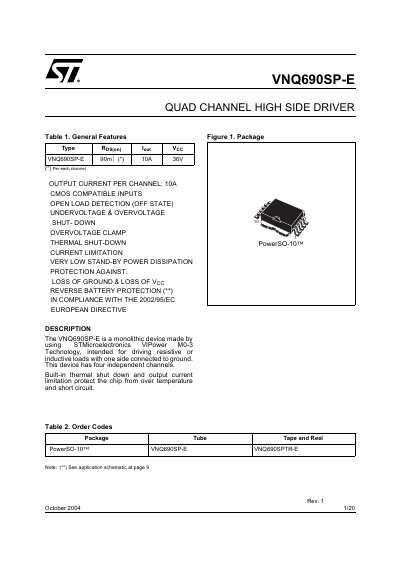

STMicroelectronics VNQ690SP-E Quad Channel High Side Driver Datasheet
The VNQ690SP-E is a monolithic quad channel high side driver designed for driving resistive or inductive loads with one side connected to ground. It utilizes STMicroelectronics VIPower M0-3 Technology and features four independent channels, each capable of delivering 10A of output current.
Read onlineSTMicroelectronics VNQ690SP specifications
| Output Current Per Channel | 10A |
|---|---|
| Supply Voltage (Continuous) | 6 to 36 V |
| Thermal Shutdown Temperature | 150 °C |
| Package Type | PowerSO-10™ |
Source: STMicroelectronics VNQ690SP-E Quad Channel High Side Driver Datasheet
All STMicroelectronics VNQ690SP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current per channel?
The maximum output current per channel is 10A.
From: STMicroelectronics VNQ690SP-E Quad Channel High Side Driver Datasheet
What is the operating supply voltage range?
The operating supply voltage ranges from 6V to 36V.
From: STMicroelectronics VNQ690SP-E Quad Channel High Side Driver Datasheet
What is the maximum junction operating temperature?
The junction temperature can range from -40 to 150 °C.
From: STMicroelectronics VNQ690SP Quad Channel High Side Solid State Relay Datasheet
