Key facts
- Brand
- STMicroelectronics
- Model
- STGP10NB60S
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-08
Start here

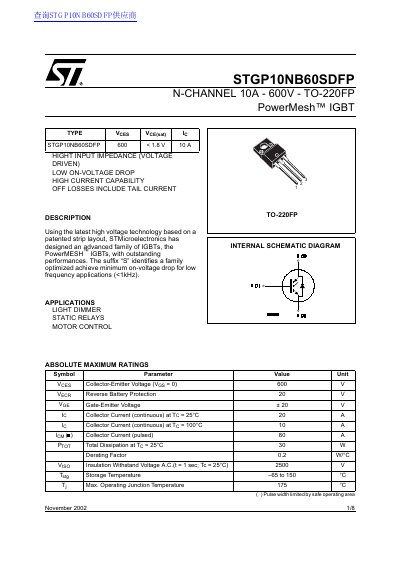

STMicroelectronics STGP10NB60SDFP PowerMesh IGBT Datasheet
This document is a technical datasheet for the STMicroelectronics STGP10NB60SDFP, an N-channel 10A - 600V TO-220FP PowerMesh™ IGBT. The device features high input impedance, low on-voltage drop, and high current capability, optimized for applications such as light dimmers, static relays, and motor control.
Read onlineSTMicroelectronics STGP10NB60S specifications
| Collector-Emitter Voltage (VGS =0) | 600 V |
|---|---|
| Collector Current (continuous) at TC =25°C | 20 A |
| Total Dissipation at TC = 25°C | 30 W |
| Insulation Withstand Voltage A.C. | 2500 V |
Source: STMicroelectronics STGP10NB60SDFP PowerMesh IGBT Datasheet
All STMicroelectronics STGP10NB60S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for this IGBT?
The device is optimized for light dimmer, static relays, and motor control applications.
From: STMicroelectronics STGP10NB60SDFP PowerMesh IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 175 °C.
From: STMicroelectronics STGP10NB60SDFP PowerMesh IGBT Datasheet
What are the applications for this IGBT?
The STGP10NB60S is designed for use in light dimmers, static relays, and motor control circuits.
From: STMicroelectronics STGP10NB60S N-Channel IGBT Datasheet
What is the maximum collector current at 25°C?
The continuous collector current rating is 20 A when the case temperature is 25 °C.
From: STMicroelectronics STGP10NB60S N-Channel IGBT Datasheet
What are the applications for the STGP10NB60SFP?
The device is suitable for light dimmer, static relays, and motor control applications.
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
