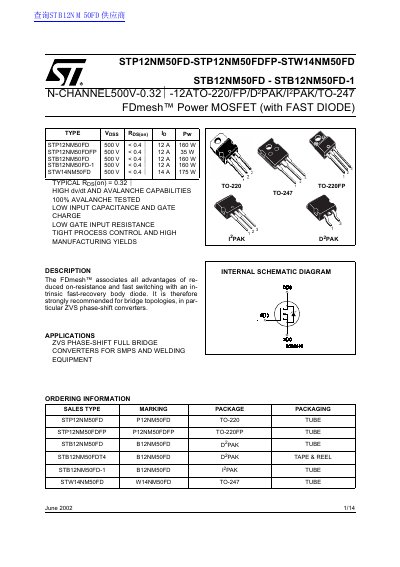

ST STP12NM50FD/STP12NM50FDFP/STW14NM50FD/STB12NM50FD/STB12NM50FD-1 handbook
This document provides technical specifications for a series of N-channel 500V FDmesh™ Power MOSFETs with integrated FAST DIODEs. The devices are designed for high dv/dt and avalanche capabilities, making them suitable for bridge topologies such as ZVS phase-shift converters used in SMPS and welding equipment.
The datasheet covers absolute maximum ratings, electrical characteristics including on-resistance and switching times, safe operating areas for various packages (TO-220, D²PAK, I²PAK, TO-247), thermal data, avalanche characteristics, and mechanical dimensions.
STMicroelectronics STB12NM50 specifications
| Continuous Drain Current (TO-220/D²PAK) | 12 A |
|---|---|
| Continuous Drain Current (TO-247) | 14 A |
| Total Dissipation (TO-220/D²PAK) | 160 W |
| Total Dissipation (D²PAK) | 35 W |
| Static Drain-source On Resistance (Typical) | 0.32 Ω |
Source: ST STP12NM50FD/STP12NM50FDFP/STW14NM50FD/STB12NM50FD/STB12NM50FD-1 handbook
All STMicroelectronics STB12NM50 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the recommended applications for these MOSFETs?
They are strongly recommended for bridge topologies, particularly ZVS phase-shift converters.
From: ST STP12NM50FD/STP12NM50FDFP/STW14NM50FD/STB12NM50FD/STB12NM50FD-1 handbook
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) ranges from -65 to 150 °C.
From: ST STP12NM50FD/STP12NM50FDFP/STW14NM50FD/STB12NM50FD/STB12NM50FD-1 handbook
What is the maximum operating junction temperature?
The operating junction temperature ranges from -65 to 150 °C.
From: ST STP12NM50/STP12NM50FP/STB12NM50/STB12NM50-1 handbook
