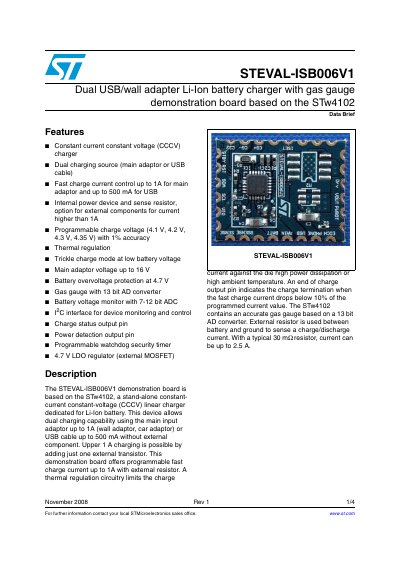

ST STEVAL-ISB006V1 handbook
The STEVAL-ISBOO6V1 is a demonstration board designed to showcase the features of the STW4102, a stand-alone constant-current constant-voltage (CCCV) linear charger dedicated for Li-ion batteries. The board supports dual charging sources, allowing users to charge via a main input adaptor or a USB cable.
Read onlineSTMicroelectronics STEVAL-ISBOO6V1 specifications
| Board dimensions | 22.7 mm x 17 mm |
|---|---|
| PCB area for STw4102 and peripherals | 12.4 mm x 7.5 mm |
| PCB layers | 4 layer |
| PCB thickness | 0.8 mm |
Source: STMicroelectronics AN2726 Application Note for STEVAL-ISBOO6V1 Evaluation Board
All STMicroelectronics STEVAL-ISBOO6V1 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum fast charge current for the main wall adaptor?
The board supports a fast charge current up to 1A when using the main adaptor.
What is the maximum fast charge current supported by the USB cable?
The board supports a fast charge current of up to 500 mA when using the USB cable.
What is the purpose of the STEVAL-ISBOO6V1 board?
It is a demonstration board designed to help users evaluate the performances of the STw4102.
From: STMicroelectronics AN2726 Application Note for STEVAL-ISBOO6V1 Evaluation Board
What type of charger is the STw4102?
It is a standalone constant-current, constant-voltage (CCCV) linear charger dedicated to Li-lon batteries.
From: STMicroelectronics AN2726 Application Note for STEVAL-ISBOO6V1 Evaluation Board
