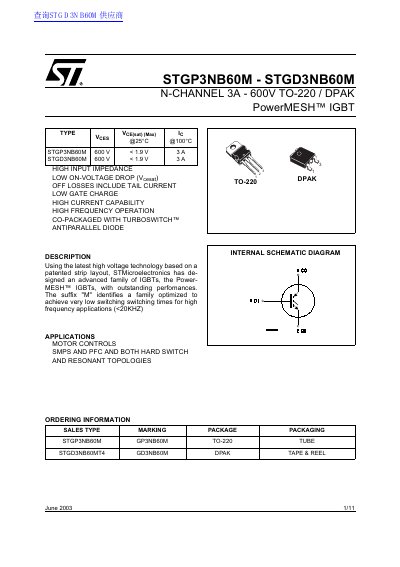

STMicroelectronics STGP3NB60M/STGD3NB60M PowerMESH IGBT Datasheet
This document describes the STMicroelectronics PowerMESH™ IGBT family, specifically models STGP3NB60M and STGD3NB60M. These N-channel devices feature a 600V collector-emitter voltage rating and are optimized for high-frequency applications with very low switching times (less than 20kHz). The suffix 'M' indicates the optimization for these specific frequency requirements.
Read onlineSTMicroelectronics STGP3NB60M specifications
| Continuous Collector Current @25°C | 6 A |
|---|---|
| Continuous Collector Current @100°C | 3 A |
| Package Types | TO-220, DPAK |
| Max Operating Junction Temperature | 150 °C |
Source: STMicroelectronics STGP3NB60M/STGD3NB60M PowerMESH IGBT Datasheet
All STMicroelectronics STGP3NB60M documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBTs?
They are designed for motor controls and SMPS/PFC circuits, supporting both hard switching and resonant topologies.
From: STMicroelectronics STGP3NB60M/STGD3NB60M PowerMESH IGBT Datasheet
What does the 'M' suffix indicate?
The suffix 'M' identifies a family optimized to achieve very low switching times for high frequency applications.
From: STMicroelectronics STGP3NB60M/STGD3NB60M PowerMESH IGBT Datasheet
What are the applications for these IGBTs?
They are designed for motor controls and SMPS/PFC circuits, supporting both hard switching and resonant topologies.
From: STMicroelectronics STGP3NB60MD/STGB3NB60MD N-Channel IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 150 °C.
From: STMicroelectronics STGP3NB60MD/STGB3NB60MD N-Channel IGBT Datasheet
