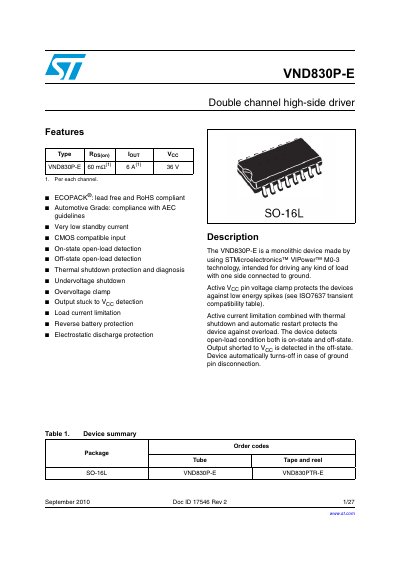

STMicroelectronics VND830P-E Double Channel High-Side Driver Datasheet
The VND830P-E is a monolithic device made by STMicroelectronics using VIPower™ technology, intended for driving loads with one side connected to ground. It features two channels with active current limitation, thermal shutdown, and automatic restart protection against overload. The device includes comprehensive protection features such as on-state and off-state open-load detection, overvoltage clamping, and reverse battery protection.
Read onlineSTMicroelectronics VND830P-E specifications
| Operating supply voltage (Vcc) | 5.5 to 36 V |
|---|---|
| On-state resistance (Rds(on)) | 60 mΩ typical at 2A, 25°C |
| Undervoltage shutdown threshold (Vusp) | 3 to 4 V |
| Overvoltage shutdown threshold (Voy) | 36 V |
| Shutdown temperature (Tjsp) | 150°C to 200°C |
| Reset temperature (TRst) | 135°C |
Source: STMicroelectronics VND830PEP-E Double Channel High Side Driver Datasheet
All STMicroelectronics VND830P-E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The maximum operating supply voltage is 36 V.
From: STMicroelectronics VND830P-E Double Channel High-Side Driver Datasheet
Does the device include thermal shutdown?
Yes, the device includes thermal shutdown protection with a shutdown temperature of 150 °C.
From: STMicroelectronics VND830P-E Double Channel High-Side Driver Datasheet
What is the maximum DC supply voltage?
The maximum DC supply voltage (Vcc) is 40 V.
From: STMicroelectronics VND830PEP-E Double Channel High Side Driver Datasheet
Does this device include open-load detection?
Yes, it detects open load conditions both in on and off-state.
From: STMicroelectronics VND830PEP-E Double Channel High Side Driver Datasheet
