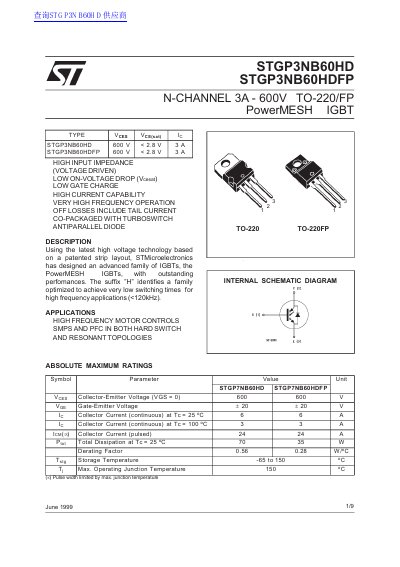

STMicroelectronics STGP3NB60HD/STGP3NB60HDFP N-Channel 3A-600V IGBT Datasheet
This document describes the STGP3NB60HD and STGP3NB60HDFP N-Channel 3A - 600V PowerMESH IGBTs, which are co-packaged with TurboSwitch antiparallel diodes. These devices utilize a patented strip layout to achieve outstanding performance, specifically optimized for high-frequency applications under 120kHz due to the 'H' suffix.
Read onlineSTMicroelectronics STGP3NB60H specifications
| Collector-Emitter Voltage | 600 V |
|---|---|
| Collector Current (continuous) at Tc = 25°C | 6 A |
| Collector Current (continuous) at Tc = 100°C | 3 A |
| Total Dissipation at Tc = 25°C | 35 W |
| Package Type | TO-220 / TO-220FP |
Source: STMicroelectronics STGP3NB60HD/STGP3NB60HDFP N-Channel 3A-600V IGBT Datasheet
All STMicroelectronics STGP3NB60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBTs?
They are designed for high frequency motor controls and SMPS and PFC in both hard switch and resonant topologies.
From: STMicroelectronics STGP3NB60HD/STGP3NB60HDFP N-Channel 3A-600V IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150°C.
From: STMicroelectronics STGP3NB60HD/STGP3NB60HDFP N-Channel 3A-600V IGBT Datasheet
What are the applications for the STGP3NB60H?
It is optimized for high frequency motor controls and SMPS and PFC in both hard switch and resonant topologies.
From: STMicroelectronics STGP3NB60H N-Channel IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STGP3NB60H N-Channel IGBT Datasheet
