Start here

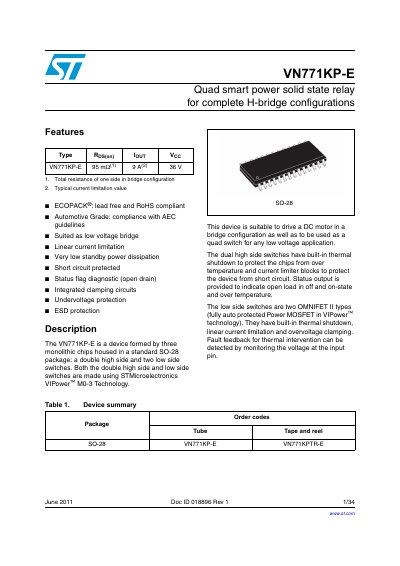

STMicroelectronics VN771KP-E Quad Smart Power Solid State Relay Datasheet
The VN771KP-E is a quad smart power solid state relay designed for complete H-bridge configurations and low voltage bridge applications. The device consists of three monolithic chips in a standard SO-28 package, utilizing STMicroelectronics ViPower™ MO-3 Technology. It includes two double high-side switches and two low-side switches, suitable for driving DC motors or acting as a quad switch.
Read onlineSTMicroelectronics VN771K specifications
| Package | SO-28 |
|---|---|
| Reverse DC Output Current | 6 A |
| Power Dissipation | 6 W |
| Junction Operating Temperature | Internally limited |
Source: STMicroelectronics VN771KP-E Quad Smart Power Solid State Relay Datasheet
All STMicroelectronics VN771K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of the VN771KP-E?
It is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application.
From: STMicroelectronics VN771KP-E Quad Smart Power Solid State Relay Datasheet
Is the VN771KP-E RoHS compliant?
Yes, it is ECOPACK® lead free and RoHS compliant.
From: STMicroelectronics VN771KP-E Quad Smart Power Solid State Relay Datasheet
What is the maximum DC output current for the dual high side switches?
The device internally limits the DC output current, but it can handle a reverse DC output current of up to 6 A.
From: STMicroelectronics VN771K Quad Smart Power Solid State Relay Datasheet
What is the maximum operating temperature for the SO-28 package case?
The case operating temperature range is from -40 to 150 °C.
From: STMicroelectronics VN771K Quad Smart Power Solid State Relay Datasheet
