Key facts
- Brand
- STMicroelectronics
- Model
- STP08C596
- Category
- LED Driver Controller
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-07
Start here

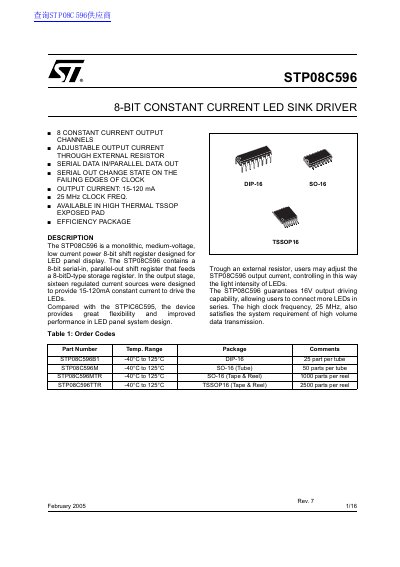

STMicroelectronics STP08C596 8-Bit Constant Current LED Sink Driver Datasheet
The STP08C596 is a monolithic, medium-voltage, low current power 8-bit shift register specifically designed for LED panel display applications. It features an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register to control sixteen regulated current sources.
Read onlineSTMicroelectronics STP08C596 specifications
| Output Current Range | 15-120 mA |
|---|---|
| Clock Frequency | 25 MHz |
| Output Voltage Capability | 16 V |
| Operating Temperature Range | -40 to +125 °C |
| Supply Voltage | 4.5 V to 5.5 V |
Source: STMicroelectronics STP08C596 8-Bit Constant Current LED Sink Driver Datasheet
All STMicroelectronics STP08C596 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the STP08C596?
It is a monolithic, medium-voltage, low current power 8-bit shift register designed for LED panel display.
From: STMicroelectronics STP08C596 8-Bit Constant Current LED Sink Driver Datasheet
What are the available package types?
The device is available in DIP-16, SO-16 (Tube), SO-16 (Tape & Reel), and TSSOP 16 (Tape & Reel).
From: STMicroelectronics STP08C596 8-Bit Constant Current LED Sink Driver Datasheet
What is the STEVAL-ILLO11V1 board used for?
The board is used for LCD backlighting.
What power supply voltage is required for the board?
The board requires a power supply between 7.5 and 30 V.
