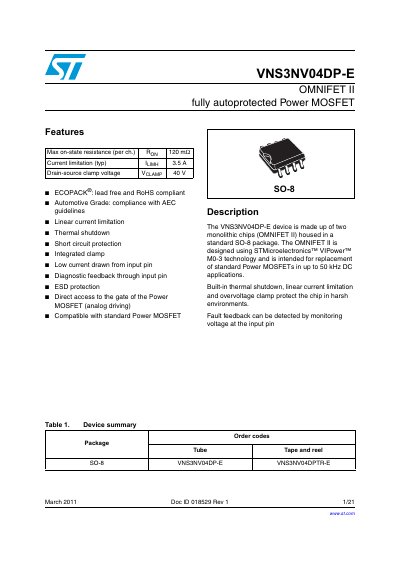

STMicroelectronics VNS3NV04DP-E OMNIFET II Datasheet
The VNS3NV04DP-E is an OMNIFET II device consisting of two monolithic chips housed in a standard SO-8 package. It is designed for use in up to 50 kHz DC applications as a replacement for standard Power MOSFETs. The device integrates built-in protection features including overvoltage clamping, linear current limitation, and thermal shutdown to operate safely in harsh environments.
Read onlineSTMicroelectronics VNS3NV04 specifications
| Max on-state resistance (per channel) | 120 mΩ |
|---|---|
| Current limitation (typical) | 3.5 A |
| Drain-source clamp voltage | 40 V |
| Operating junction temperature | Internally limited |
| Storage temperature | -55 to 150 °C |
Source: STMicroelectronics VNS3NV04DP-E OMNIFET II Datasheet
All STMicroelectronics VNS3NV04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- STMicroelectronics VNS3NV04DP-E OMNIFET II Datasheet 21 p
- STMicroelectronics VNN3NV04P-E/VNS3NV04P-E OMNIFET II Datasheet 22 p
- STMicroelectronics VNS3NV04D-E OMNIFET II Datasheet 21 p
- ST VNN3NV04 VNS3NV04 VND3NV04 VND3NV04-1 handbook 26 p
- STMicroelectronics VNS3NV04D OMNIFET II Power MOSFET Datasheet 14 p
Questions answered in these manuals
What is the typical current limitation of the VNS3NV04DP-E?
The typical current limitation is 3.5 A.
Is the VNS3NV04DP-E RoHS compliant?
Yes, it is ECOPACK compliant, meaning it is lead free and RoHS compliant.
What is the maximum operating junction temperature?
The operating junction temperature is internally limited, with a storage temperature range of -55 to 150 °C.
From: STMicroelectronics VNN3NV04P-E/VNS3NV04P-E OMNIFET II Datasheet
Does this device include built-in protection?
Yes, the device includes built-in thermal shutdown, linear current limitation, and overvoltage clamp protection.
From: STMicroelectronics VNN3NV04P-E/VNS3NV04P-E OMNIFET II Datasheet
What is the maximum On-State resistance per channel?
The maximum On-State resistance per channel is 120 mΩ.
What is the typical current limitation?
The typical current limitation is 3.5 A.
