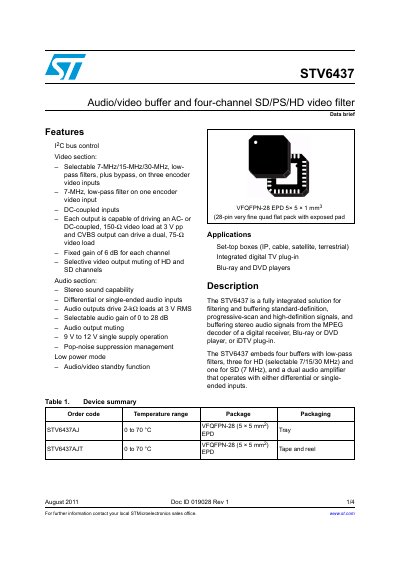

STMicroelectronics STV6437 Audio/Video Buffer and Filter Datasheet
The STV6437 is a fully integrated solution designed to filter and buffer standard-definition (SD), progressive-scan, and high-definition (HD) video signals, as well as stereo audio signals. It embeds four buffers with low-pass filters—three selectable for HD inputs and one fixed for SD—and a dual audio amplifier compatible with differential or single-ended inputs.
The device is optimized for use in set-top boxes, integrated digital TV plug-ins, Blu-ray players, and DVD recorders. Key features include DC-coupled video inputs, high-drive capability outputs, smart pop-noise management, selective standby commands, and an 8-step selectable audio gain up to +28 dB.
STMicroelectronics STV6437 specifications
| Supply Voltage | 9V to 12 V single supply |
|---|---|
| Video Input Filters (HD) | 7-MHz, 15-MHz, or 30-MHz low-pass |
| Video Input Filter (SD) | 7-MHz low-pass filter |
| Audio Gain Range | 0 to 28 dB |
| Video Output Load Capability | 150-Ω at 3 V pp (AC/DC coupled) |
| Audio Output Load Capability | 2-kΩ loads at 3 V RMS |
| Package Type | VFQFPN-28 (5x 5 mm) |
