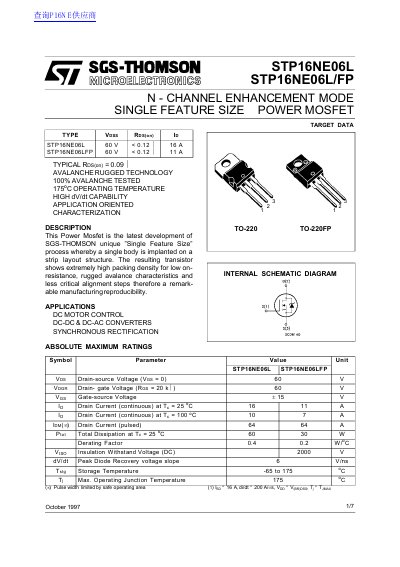

STMicroelectronics STP16NE06L/FP N-Channel MOSFET Datasheet
This document provides technical specifications for the STP16NE06L and STP16NE06LFP N-channel enhancement mode single feature size power MOSFETs. The devices are designed for applications such as DC motor control, DC-DC and DC-AC converters, and synchronous rectification. They feature a 60V drain-source voltage rating and a maximum continuous drain current of 16A at 25°C.
Read onlineSTMicroelectronics STP16NE06 specifications
| Drain Current (continuous) at 25°C | 16 A |
|---|---|
| Operating Junction Temperature | 175 °C |
| Package Types | TO-220, TO-220FP |
Source: STMicroelectronics STP16NE06L/FP N-Channel MOSFET Datasheet
All STMicroelectronics STP16NE06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for the STP16NE06L at 25°C?
The maximum continuous drain current for the STP16NE06L at 25°C is 16 A.
From: STMicroelectronics STP16NE06L/FP N-Channel MOSFET Datasheet
What are the applications for this MOSFET?
The device is suitable for DC motor control, DC-DC & DC-AC converters, and synchronous rectification.
From: STMicroelectronics STP16NE06/STP16NE06FP N-Channel MOSFET Preliminary Data Sheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C.
From: STMicroelectronics STP16NE06/STP16NE06FP N-Channel MOSFET Preliminary Data Sheet
