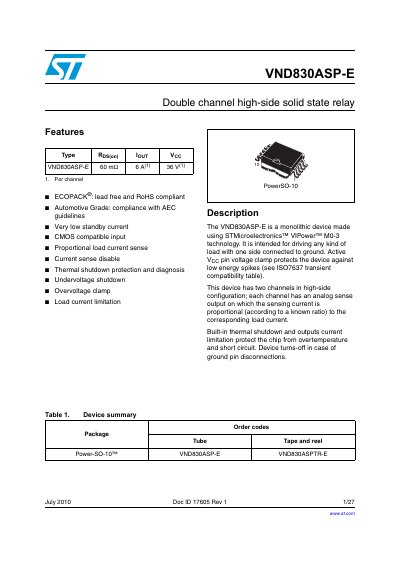

STMicroelectronics VND830ASP-E Double Channel High-Side Solid State Relay Datasheet
The VND830ASP-E is a monolithic double channel high-side solid state relay designed for driving loads with one side connected to ground. It features proportional load current sense outputs, thermal shutdown, and undervoltage/overvoltage protection. The device is built using STMicroelectronics VIPower technology and is available in the PowerSO-10 package.
Read onlineSTMicroelectronics VND830ASP specifications
| Operating supply voltage | 5.5 to 36 V |
|---|---|
| Undervoltage shutdown | 3 V |
| Overvoltage shutdown | 36 V |
| Thermal resistance junction-ambient | 51.2 °C/W |
| Package type | PowerSO-10 |
Source: STMicroelectronics VND830ASP-E Double Channel High-Side Solid State Relay Datasheet
All STMicroelectronics VND830ASP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current?
The output current is internally limited.
From: STMicroelectronics VND830ASP-E Double Channel High-Side Solid State Relay Datasheet
Is the device RoHS compliant?
Yes, the device is ECOPACK lead free and RoHS compliant.
From: STMicroelectronics VND830ASP-E Double Channel High-Side Solid State Relay Datasheet
What is the maximum output current for a short circuit?
The device can handle a DC short circuit current of up to 6A.
From: STMicroelectronics VND830ASP Double Channel High Side Solid State Relay Datasheet
What is the typical thermal shutdown temperature?
The internal thermal shut-down activates at a junction temperature of approximately 175°C.
From: STMicroelectronics VND830ASP Double Channel High Side Solid State Relay Datasheet
