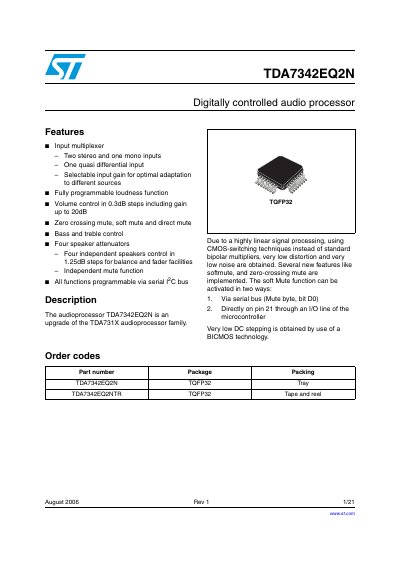

STMicroelectronics TDA7342EQ2N Digitally Controlled Audio Processor Datasheet
The TDA7342EQ2N is a digitally controlled audio processor designed as an upgrade to the TDA731X family. It features a highly linear signal processing architecture using CMOS-switching techniques to achieve very low distortion and noise. The device supports multiple input sources, including stereo, mono, and quasi-differential inputs, with programmable gain and loudness functions.
Read onlineSTMicroelectronics TDA7342 specifications
| Supply Voltage | 6 to 10.2 V |
|---|---|
| Signal to Noise Ratio | 106 dB |
| Channel Separation | 100 dB |
| Volume Control Range | -59.7 to 20 dB |
| Bass Control Range | -10 to +18 dB |
| Treble Control Range | -14 to +14 dB |
| Mute Attenuation | 100 dB |
Source: STMicroelectronics TDA7342EQ2N Digitally Controlled Audio Processor Datasheet
All STMicroelectronics TDA7342 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating supply voltage range?
The operating supply voltage ranges from 6V to 10.2V.
From: STMicroelectronics TDA7342EQ2N Digitally Controlled Audio Processor Datasheet
How many input sources does the TDA7342EQ2N support?
It supports two stereo inputs, one mono input, and one quasi-differential input.
From: STMicroelectronics TDA7342EQ2N Digitally Controlled Audio Processor Datasheet
What is the maximum input signal handling?
The maximum input signal handling is 2.6 Vrms.
From: STMicroelectronics TDA7342 Digitally Controlled Audio Processor Datasheet
What is the maximum operating supply voltage for the TDA7342?
The maximum operating supply voltage is 10.5 V.
From: STMicroelectronics TDA7342 Digitally Controlled Audio Processor Datasheet
