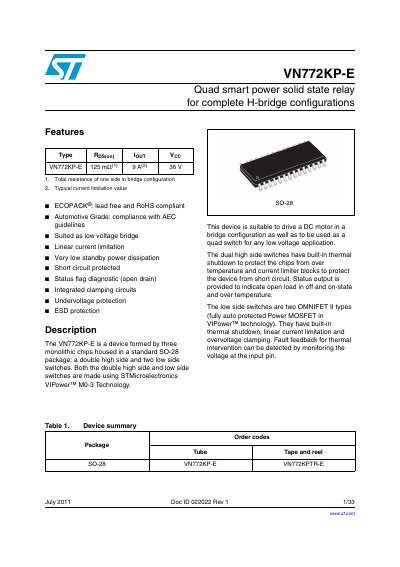

STMicroelectronics VN772KP-E Quad Smart Power Solid State Relay Datasheet
The VN772KP-E is an automotive-grade device formed by three monolithic chips in a standard SO-28 package. It integrates two double high-side switches and two low-side switches using STMicroelectronics ViPower™ MO-3 Technology, making it suitable for driving DC motors in bridge configurations or as a quad switch.
Read onlineSTMicroelectronics VN772K specifications
| Package type | SO-28 |
|---|---|
| Total resistance of one side in bridge configuration | 120 mΩ |
| Maximum DC supply voltage (Vcc) | 4 V |
| Reverse DC output current limit | -6 A |
Source: STMicroelectronics VN772K Quad Smart Power Solid State Relay Datasheet
All STMicroelectronics VN772K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC supply voltage for this device?
The absolute maximum rating for the DC supply voltage (Vcc) is 4 V.
From: STMicroelectronics VN772KP-E Quad Smart Power Solid State Relay Datasheet
How much power can this device dissipate at a case temperature of 25°C?
The maximum power dissipation is 6 W when the case temperature is 25°C.
From: STMicroelectronics VN772KP-E Quad Smart Power Solid State Relay Datasheet
What is the package type for the VN772K?
The device is housed in a standard SO-28 package.
From: STMicroelectronics VN772K Quad Smart Power Solid State Relay Datasheet
Is the VN772K suitable for H-bridge configurations?
Yes, it is designed specifically for complete H-bridge configurations as well as low voltage applications.
From: STMicroelectronics VN772K Quad Smart Power Solid State Relay Datasheet
