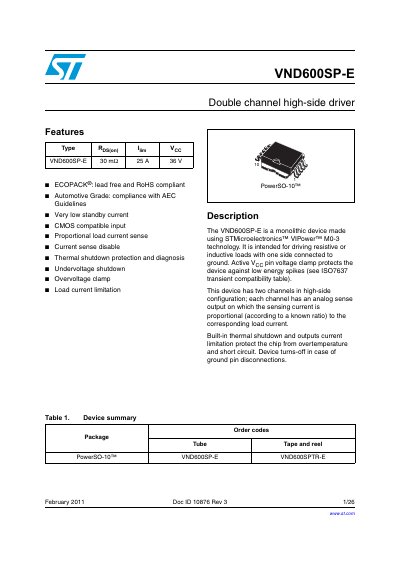

STMicroelectronics VND600SP-E Double Channel High-Side Driver Datasheet
The VND600SP-E is a monolithic double channel high-side driver designed for driving resistive or inductive loads with one side connected to ground. It features proportional load current sense technology, thermal shutdown protection, and active Voc pin voltage clamp to protect the device against low energy spikes. The device includes built-in thermal shutdown and outputs current limitation to protect the chip from overtemperature and short circuit conditions.
Read onlineSTMicroelectronics VND600SP specifications
| On-state resistance | 30 mΩ |
|---|---|
| Output current | 25 A |
| Package | PowerSO-10 |
| Operating temperature | -40 to 150 °C |
Source: STMicroelectronics VND600SP-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND600SP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum DC supply voltage for this device?
The absolute maximum rating for the DC supply voltage (Vcc) is 4 V.
From: STMicroelectronics VND600SP-E Double Channel High-Side Driver Datasheet
Does the device have thermal shutdown?
Yes, the device includes built-in thermal shutdown protection.
From: STMicroelectronics VND600SP Double Channel High-Side Solid State Relay Datasheet
What are the operating conditions for the specified electrical characteristics?
The values provided apply when the supply voltage is between 8 V and 36 V and the junction temperature is between -40°C and 150°C.
From: STMicroelectronics VND600SP Double Channel High-Side Solid State Relay Datasheet
