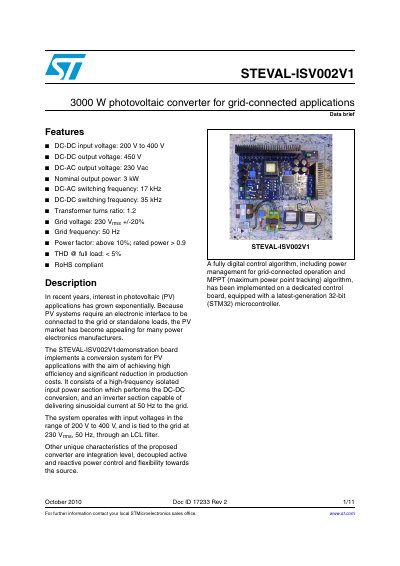

ST STEVAL-ISV002V1 3000 W photovoltaic converter for grid-connected applications handbook
The STEVAL-ISV002V1 is a demonstration board designed as a 3000 W photovoltaic converter for grid-connected applications. It implements a conversion system to achieve high efficiency and reduced production costs, suitable for connecting PV systems to the electrical grid or standalone loads.
Read onlineSTMicroelectronics STEVAL-ISV002V1 specifications
| Nominal output power | 3 kW |
|---|---|
| DC-AC output voltage | 230 Vac |
| Grid frequency | 50 Hz |
| Power factor | > 0.9 |
| THD @ full load | < 5% |
Source: ST STEVAL-ISV002V1 3000 W photovoltaic converter for grid-connected applications handbook
All STMicroelectronics STEVAL-ISV002V1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the nominal output power rating of this converter?
The device has a nominal output power of 3 kW.
From: ST STEVAL-ISV002V1 3000 W photovoltaic converter for grid-connected applications handbook
What input voltage range does the DC-DC section support?
It operates with input voltages in the range of 200 V to 400 V.
From: ST STEVAL-ISV002V1 3000 W photovoltaic converter for grid-connected applications handbook
What is the nominal output power of the PV system?
The nominal output power of the system is 3 kW.
From: STMicroelectronics AN3095 Application Note for STEVAL-ISV002V1/V2 PV System
What is the operating range for the DC-DC input voltage?
The system operates with input voltages in the range of 200 V to 400 V.
From: STMicroelectronics AN3095 Application Note for STEVAL-ISV002V1/V2 PV System
