Start here

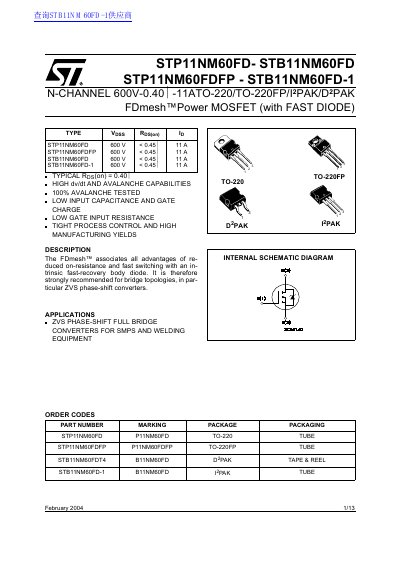

ST STP11NM60FD/STB11NM60FD/STP11NM60FDFP/STB11NM60FD-1 handbook
This document provides technical specifications and application information for the STMicroelectronics FDmesh™ power MOSFET family. The devices feature an intrinsic fast-recovery body diode, making them suitable for bridge topologies such as ZVS phase-shift converters used in SMPS and welding equipment.
The datasheet details absolute maximum ratings, electrical characteristics including on-resistance and switching times, avalanche capabilities, and thermal data for various packages (TO-220, TO-220FP, D2PAK, I?7PAK). It also includes safe operating area graphs, typical application circuits, and mechanical footprint dimensions.
All STMicroelectronics STP11NM60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the recommended applications for these MOSFETs?
They are strongly recommended for bridge topologies, particularly ZVS phase-shift converters.
From: ST STP11NM60FD/STB11NM60FD/STP11NM60FDFP/STB11NM60FD-1 handbook
What is the maximum continuous drain current at a case temperature of 25°C?
The device supports a maximum continuous drain current of 11 A when the case temperature is 25°C.
From: STMicroelectronics STP11NM60A/STP11NM60AFP/STB11NM60A-1 Datasheet
What is the maximum operating junction temperature?
The device can operate with a maximum junction temperature of 150°C.
From: STMicroelectronics STP11NM60A/STP11NM60AFP/STB11NM60A-1 Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: ST STP11NM60/STP11NM60FP/STB11NM60/STB11NM60-1 handbook
