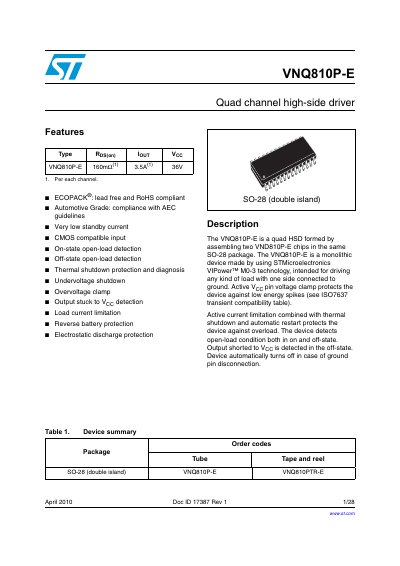

STMicroelectronics VNQ810P-E Quad Channel High-Side Driver Datasheet
The VNQ810P-E is a quad channel high-side driver formed by assembling two VND810P-E chips in the same SO-28 package. It is designed to drive any kind of load with one side connected to ground, utilizing STMicroelectronics VPower™ MOS-3 technology. The device includes comprehensive protection features such as open-load detection in both on and off states, thermal shutdown, undervoltage shutdown, and active current limitation.
Read onlineSTMicroelectronics VNQ810 specifications
| Operating supply voltage | 5.5 to 36 V |
|---|---|
| Reverse DC output current | 6 A |
| Package type | SO-28 (double island) |
| Storage temperature | -55 to 150 °C |
Source: STMicroelectronics VNQ810P-E Quad Channel High-Side Driver Datasheet
All STMicroelectronics VNQ810 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating supply voltage?
The maximum operating supply voltage is 36 V.
From: STMicroelectronics VNQ810P-E Quad Channel High-Side Driver Datasheet
Does the device include open-load detection?
Yes, the device detects open-load condition both in on and off-state.
From: STMicroelectronics VNQ810P-E Quad Channel High-Side Driver Datasheet
What technology is used in the VNQ810M-E?
The device is made using STMicroelectronics viPower MO-3 Technology.
From: STMicroelectronics VNQ810M-E Quad Channel High Side Driver Datasheet
Does the device detect open load conditions?
Yes, it detects open load conditions in both the ON and OFF states.
From: STMicroelectronics VNQ810M-E Quad Channel High Side Driver Datasheet
What is the maximum DC supply voltage?
The absolute maximum rating for the DC supply voltage (Veco) is 4 V.
From: STMicroelectronics VNQ810PEP-E Quad Channel High Side Driver Datasheet
Does this device detect open loads in both on and off states?
Yes, the device detects the open load condition in both the on and off-state.
From: STMicroelectronics VNQ810PEP-E Quad Channel High Side Driver Datasheet
