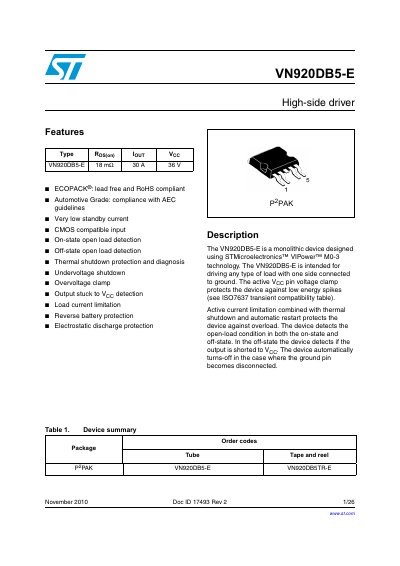

STMicroelectronics VN920DB5-E High-side Driver Datasheet
The VN920DB5-E is a monolithic high-side driver designed using VIPower MOS technology. It is intended for driving any type of load with one side connected to ground, providing protection against low energy spikes via an active output voltage clamp.
Key features include on-state and off-state open-load detection, undervoltage and overvoltage shutdown, reverse battery protection, and electrostatic discharge (ESD) protection. The device is available in a P2PAK package and complies with ECOPACK lead-free standards.
STMicroelectronics VN920 specifications
| Operating supply voltage (VCC) | 5.5 to 36 V |
|---|---|
| Undervoltage shutdown threshold (VUSP) | 4 V typical |
| Overvoltage shutdown threshold (VOY) | 36 V |
Source: STMicroelectronics VN920DB5-E High-side Driver Datasheet
All STMicroelectronics VN920 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- STMicroelectronics VN920DB5-E High-side Driver Datasheet 26 p
- STMicroelectronics VN920B5-E Single Channel High-Side Solid State Relay Datasheet 26 p
- STMicroelectronics VN920SP-E High-side Driver Datasheet 27 p
- STMicroelectronics VN920-E Single-Channel High Side Driver Datasheet 23 p
- STMicroelectronics VN920PEP-E Single Channel High Side Driver Datasheet 26 p
- STMicroelectronics VN920DSP High Side Driver Datasheet 19 p
- STMicroelectronics VN920D-B5/VN920DSO High-Side Driver Datasheet 32 p
- STMicroelectronics VN920 Single Channel High-Side Solid-State Relay Datasheet 34 p
- STMicroelectronics VN920SP Single Channel High-Side Solid-State Relay Datasheet 26 p
- STMicroelectronics VN920D-B5/VN920DSO High Side Driver Datasheet 22 p
- STMicroelectronics VN920SP Single Channel High Side Solid State Relay Handbook 16 p
Questions answered in these manuals
What is the operating supply voltage range?
The device operates with a supply voltage between 5.5 V and 36 V.
From: STMicroelectronics VN920DB5-E High-side Driver Datasheet
Is this device RoHS compliant?
Yes, the VN920DB5-E is ECOPACK lead free and RoHS compliant.
From: STMicroelectronics VN920DB5-E High-side Driver Datasheet
What is the maximum junction operating temperature?
The device has an internally limited junction operating temperature, with a case operating range of -40 to 150 °C.
From: STMicroelectronics VN920B5-E Single Channel High-Side Solid State Relay Datasheet
Is the VN920B5-E RoHS compliant?
Yes, the device is ECOPACK lead free and RoHS compliant.
From: STMicroelectronics VN920B5-E Single Channel High-Side Solid State Relay Datasheet
What is the maximum DC output current?
The device has an internally limited DC output current.
From: STMicroelectronics VN920SP-E High-side Driver Datasheet
Is the VN920SP-E RoHS compliant?
Yes, it is ECOPACK lead free and RoHS compliant.
From: STMicroelectronics VN920SP-E High-side Driver Datasheet
