Start here

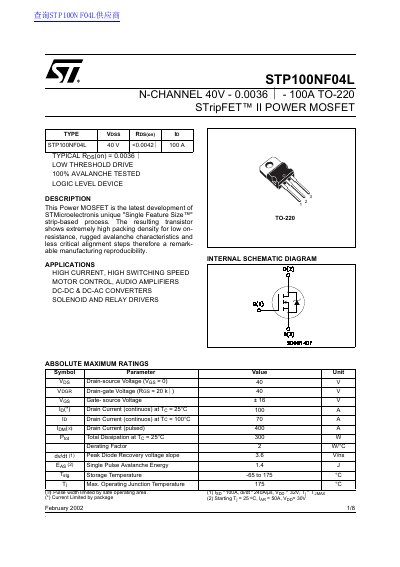

STMicroelectronics STP100NF04L N-Channel Power MOSFET Datasheet
This document is a technical datasheet for the STP100NF04L, an N-channel Power MOSFET manufactured by STMicroelectronics. The device utilizes the company's 'Single Feature Size™' strip-based process to achieve high packing density and low on-resistance.
Key specifications include a drain-source voltage rating of 40V, a maximum continuous drain current of 100A at 25°C, and a typical static drain-source on-resistance (RDS(on)) of 0.0036 Ω. The component is housed in a TO-220 package and is designed for applications requiring high current and switching speed.
STMicroelectronics STP100NF04 specifications
| Continuous Drain Current @ 25°C | 100 A |
|---|---|
| Total Dissipation @ 25°C | 300 W |
| Static Drain-source On Resistance (Typical) | 0.0036 Ω |
| Package Type | TO-220 |
Source: STMicroelectronics STP100NF04L N-Channel Power MOSFET Datasheet
All STMicroelectronics STP100NF04 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 175 °C.
From: STMicroelectronics STP100NF04L N-Channel Power MOSFET Datasheet
Is this device avalanche tested?
Yes, the device is 100% avalanche tested.
From: STMicroelectronics STP100NF04L N-Channel Power MOSFET Datasheet
