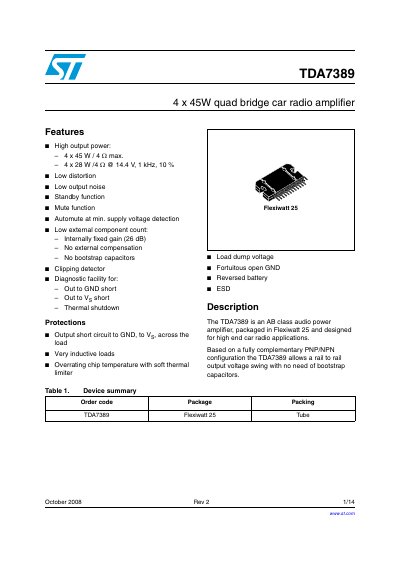

STMicroelectronics TDA7389 Quad Bridge Car Radio Amplifier Datasheet
The document describes the TDA7389, an AB class audio power amplifier packaged in Flexiwatt 25. It is specifically designed for high-end car radio applications and features a fully complementary PNP/NPN configuration that allows rail-to-rail output voltage swing without bootstrap limiter capacitors.
Key specifications include four channels of up to 45W maximum output power at 14.4V supply. The device incorporates extensive protection mechanisms such as thermal shutdown, short-circuit detection (to GND and Vcc), load dump voltage protection, and reversed battery protection. It also features a standby function with automute capabilities.
STMicroelectronics TDA7389 specifications
| Output power (max) | 4 x 45 W |
|---|---|
| Voltage gain (typical) | 26 dB |
| Quiescent current | 150 mA |
| Package type | Flexiwatt 25 |
Source: STMicroelectronics TDA7389 Quad Bridge Car Radio Amplifier Datasheet
All STMicroelectronics TDA7389 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power of the TDA7389?
The device provides a maximum output power of 4 x 45 W at a supply voltage of 14.4 V.
From: STMicroelectronics TDA7389 Quad Bridge Car Radio Amplifier Datasheet
Does the TDA7389 require external compensation capacitors?
No, it does not require external compensation or bootstrap capacitors as the gain is internally fixed.
From: STMicroelectronics TDA7389 Quad Bridge Car Radio Amplifier Datasheet
What is the maximum output power of the TDA7389A?
The amplifier delivers a maximum output power of 4 x 45 W at a supply voltage of 14.4 V.
From: STMicroelectronics TDA7389A Quad Bridge Car Radio Amplifier Datasheet
Does the TDA7389A require external compensation capacitors?
No, it does not require external compensation or bootstrap capacitors as the gain is internally fixed.
From: STMicroelectronics TDA7389A Quad Bridge Car Radio Amplifier Datasheet
