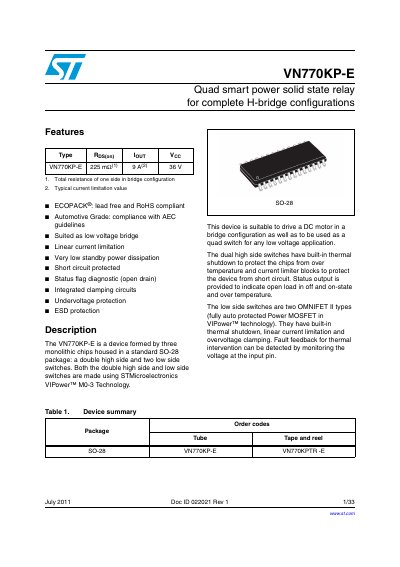

STMicroelectronics VN770KP-E Quad Smart Power Solid State Relay Datasheet
The VN770KP-E is a device formed by three monolithic chips housed in a standard SO-28 package, comprising a double high side and two low side switches. It is designed to drive DC motors in bridge configurations or serve as a quad switch for low voltage applications. The device utilizes STMicroelectronics ViPower™ MO-3 Technology for the switches.
Key features include built-in thermal shutdown, linear current limitation, overvoltage clamping, and undervoltage protection. The dual high side switches provide a status output to indicate open load conditions and over-temperature events, while the low side switches feature fault feedback detectable via the input pin voltage. The device is suitable for automotive grade applications and is RoHS compliant.
STMicroelectronics VN770K specifications
| Package | SO-28 |
|---|---|
| Reverse Supply Voltage | -0.3 V |
| DC Output Current (Reverse) | 6 A |
| DC Input Current | +10 mA |
| Power Dissipation (Tc = 25°C) | 6 W |
| Junction Operating Temperature | Internally limited |
| Case Operating Temperature | -40 to 150 °C |
| Storage Temperature | -55 to 150 °C |
Source: STMicroelectronics VN770KP-E Quad Smart Power Solid State Relay Datasheet
All STMicroelectronics VN770K documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the VN770KP-E?
The device is housed in a standard SO-28 package.
From: STMicroelectronics VN770KP-E Quad Smart Power Solid State Relay Datasheet
Is the VN770KP-E RoHS compliant?
Yes, it is ECOPACK compliant, which means it is lead free and RoHS compliant.
From: STMicroelectronics VN770KP-E Quad Smart Power Solid State Relay Datasheet
What is the main application of the VN770K?
It is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application.
From: STMicroelectronics VN770K Quad Smart Power Solid State Relay Datasheet
What is the maximum DC output current for the VN770K?
The device has an internally limited DC output current of 9 A.
From: STMicroelectronics VN770K Quad Smart Power Solid State Relay Datasheet
