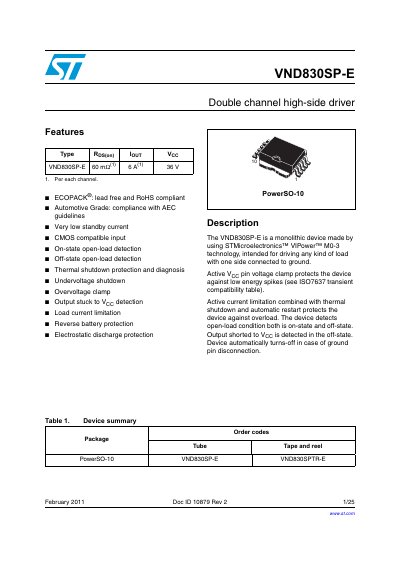

STMicroelectronics VND830SP-E Double Channel High-Side Driver Datasheet
The VND830SP-E is a monolithic double channel high-side driver designed for driving any kind of load. It is manufactured using STMicroelectronics' viPower™ technology and is intended for automotive applications, complying with AEC guidelines. The device features a PowerSO-10 package and includes ECOPACK® lead-free and RoHS compliant construction.
Read onlineSTMicroelectronics VND830SP specifications
| Supply voltage | 5.5 to 36 V |
|---|---|
| Shutdown temperature | 150 to 200 °C |
| Reverse DC supply voltage | -0.3 V |
| Package type | PowerSO-10 |
Source: STMicroelectronics VND830SP-E Double Channel High-Side Driver Datasheet
All STMicroelectronics VND830SP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the VND830SP-E RoHS compliant?
Yes, the device is ECOPACK® lead free and RoHS compliant.
From: STMicroelectronics VND830SP-E Double Channel High-Side Driver Datasheet
Does the device have thermal shutdown protection?
Yes, it includes thermal shutdown protection and diagnosis.
From: STMicroelectronics VND830SP-E Double Channel High-Side Driver Datasheet
What is the package type for the VND830SP?
The device is available in a PowerSO-10 package.
From: STMicroelectronics VND830SP Double Channel High-Side Driver Datasheet
Does the VND830SP detect open loads?
Yes, it detects the open-load condition in both the on-state and off-state.
From: STMicroelectronics VND830SP Double Channel High-Side Driver Datasheet
