Start here

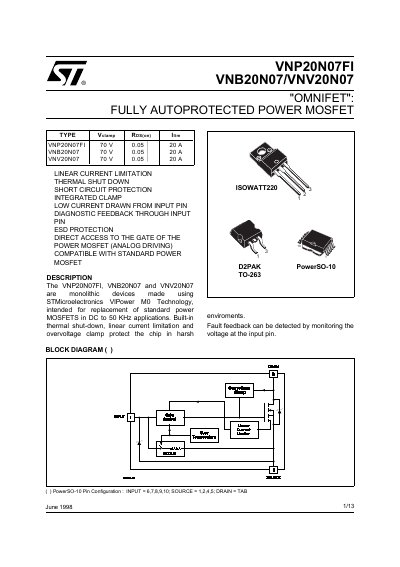

STMicroelectronics VNP20N07FI/VNB20N07/VNV20N07 OMNIFET Datasheet
The VNP20N07FI, VNB20N07, and VNV20N07 are monolithic devices made using STMicroelectronics VIPower technology. They are intended for replacement of standard power MOSFETs in DC to 50 KHz applications. These devices integrate built-in thermal shut-down, linear current limitation, and fault feedback capabilities.
Read onlineSTMicroelectronics VNP20N07 specifications
| Drain-source Voltage (Vin = 0) | 70 V |
|---|---|
| Input Voltage | 18 V |
| Drain Current (Internally Limited) | 20 A |
| Operating Junction Temperature | Internally Limited |
| Storage Temperature | -55 to 150 °C |
| Overtemperature Shutdown Threshold | 150 °C |
Source: STMicroelectronics VNP20N07FI/VNB20N07/VNV20N07 OMNIFET Datasheet
All STMicroelectronics VNP20N07 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The device has an internally limited overtemperature shutdown threshold at a minimum of 150°C.
From: STMicroelectronics VNP20N07FI/VNB20N07/VNV20N07 OMNIFET Datasheet
How is the fault condition detected?
A Status Feedback is provided through the Input pin, which connects to ground via an equivalent resistance of 100 Ω during a fault.
From: STMicroelectronics VNP20N07FI/VNB20N07/VNV20N07 OMNIFET Datasheet
What is the overtemperature shutdown threshold?
The overtemperature shutdown occurs at a minimum of 150°C.
From: STMicroelectronics VNP20N07 Fully Autoprotected Power MOSFET Datasheet
At what temperature does the device automatically restart?
The device is automatically restarted when the chip temperature falls below 135°C.
From: STMicroelectronics VNP20N07 Fully Autoprotected Power MOSFET Datasheet
