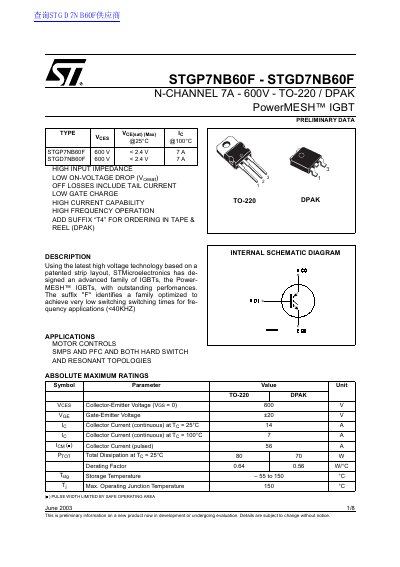

STMicroelectronics STGP7NB60F/STGD7NB60F Preliminary Data Sheet
This preliminary data sheet describes the STGP7NB60F and STGD7NB60F, which are N-channel 7A 600V PowerMESH™ IGBTs available in TO-220 and DPAK packages. The 'F' suffix identifies a family optimized to achieve very low switching times for frequency applications below 40kHz.
The document provides absolute maximum ratings, electrical characteristics, thermal data, and mechanical dimensions for both package types. It also includes application information for motor controls and SMPS/PFC circuits, along with test circuit diagrams for gate charge and inductive load switching.
STMicroelectronics STGP7NB60F specifications
| Collector-Emitter Voltage | 600 V |
|---|---|
| Collector Current (continuous) at Tc = 25°C | 14 A |
| Collector Current (continuous) at Tc = 100°C | 7 A |
| Total Dissipation at To = 25°C (TO-220) | 80 W |
| Total Dissipation at To = 25°C (DPAK) | 70 W |
| Operating Junction Temperature | 150 °C |
| Package Types | TO-220 / DPAK |
Source: STMicroelectronics STGP7NB60F/STGD7NB60F Preliminary Data Sheet
All STMicroelectronics STGP7NB60F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these IGBTs?
They are suitable for motor controls and SMPS and PFC, including both hard switch and resonant topologies.
From: STMicroelectronics STGP7NB60F/STGD7NB60F Preliminary Data Sheet
What is the maximum collector current at 25°C?
The maximum collector current at a case temperature of 25°C is 14 A.
From: STMicroelectronics STGP7NB60F/STGD7NB60F Preliminary Data Sheet
What are the applications for these IGBTs?
They are designed for motor controls, SMPS, PFC, and both hard switch and resonant topologies.
From: STMicroelectronics STGP7NB60FD/STGB7NB60FD N-Channel IGBT Datasheet
What is the maximum switching frequency?
The family is optimized for high frequency applications below 40kHz.
From: STMicroelectronics STGP7NB60FD/STGB7NB60FD N-Channel IGBT Datasheet
