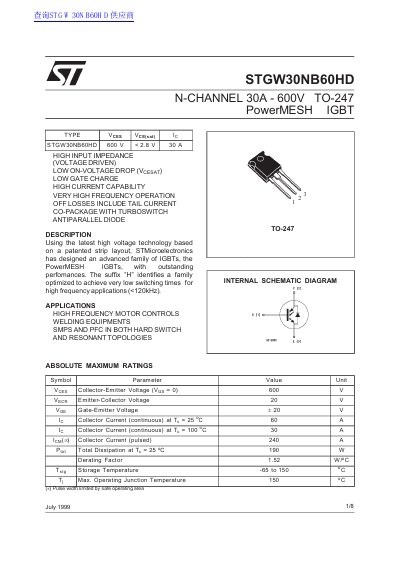

STMicroelectronics STGW30NB60HD PowerMESH IGBT Datasheet
This document provides technical specifications for the STGW30NB60HD, an N-channel 380A-600V PowerMESH™ IGBT housed in a TO-247 package. The device is optimized for high-frequency applications under 120kHz and includes a co-packaged TurboSwitch™ antiparallel diode to reduce switching losses.
Read onlineSTMicroelectronics STGW30NB60H specifications
| Collector-Emitter Voltage | 600 V |
|---|---|
| Collector Current (continuous) at 25 °C | 60 A |
| Collector Current (continuous) at 100 °C | 30 A |
| Total Dissipation at 25 °C | 190 W |
| Package Type | TO-247 |
| Operating Junction Temperature | 150 °C |
| Thermal Resistance Junction-case | 0.66 °C/W |
Source: STMicroelectronics STGW30NB60HD PowerMESH IGBT Datasheet
All STMicroelectronics STGW30NB60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector current at 25 °C?
The maximum continuous collector current at 25 °C is 60 A.
From: STMicroelectronics STGW30NB60HD PowerMESH IGBT Datasheet
Does this part include a freewheeling diode?
Yes, the device features a co-packaged TurboSwitch™ antiparallel diode.
From: STMicroelectronics STGW30NB60HD PowerMESH IGBT Datasheet
What are the applications for this IGBT?
It is designed for high frequency motor controls, welding equipments, and SMPS and PFC in both hard switch and resonant topologies.
From: STMicroelectronics STGW30NB60H PowerMESH IGBT Datasheet
Is this device optimized for high frequency operation?
Yes, the suffix "H" identifies a family optimized to achieve very low switching times for high frequency applications (<120kHz).
From: STMicroelectronics STGW30NB60H PowerMESH IGBT Datasheet
