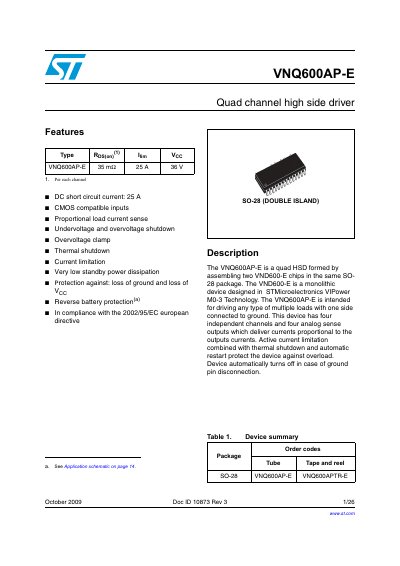

STMicroelectronics VNQ600AP-E Quad Channel High Side Driver Datasheet
The VNQ600AP-E is a quad channel high side driver (HSD) formed by assembling two VND600-E chips in a single SO-28 package. Designed using STMicroelectronics VIPower MO-3 Technology, the device is intended for driving multiple loads with one side connected to ground. It features four independent channels and four analog sense outputs that deliver currents proportional to the output currents.
Read onlineSTMicroelectronics VNQ600 specifications
| Max supply voltage | 36V |
|---|---|
| Max On-state resistance | 35mΩ |
| Current limitation (typ.) | 25A |
| DC short circuit current | 25A |
| Reverse output current (continuous) | -15 A |
| Input current | +/- 10 mA |
| Current sense maximum voltage | 3 V |
| Ground current at Tjgq < 25 °C | -200 mA |
| Prot Power dissipation (per island) | 6.25 W |
| Junction operating temperature | Internally limited |
| Storage temperature | -55 to 150 °C |
Source: STMicroelectronics VNQ600 Quad Channel High Side Solid State Relay Datasheet
All STMicroelectronics VNQ600 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the storage temperature range?
The storage temperature range is from -55 to 150 °C.
From: STMicroelectronics VNQ600AP-E Quad Channel High Side Driver Datasheet
What is the maximum switching energy?
The maximum switching energy is 126 mJ under specific test conditions.
From: STMicroelectronics VNQ600AP-E Quad Channel High Side Driver Datasheet
What is the maximum supply voltage for the VNQ600?
The maximum supply voltage (Veco) is 36V.
From: STMicroelectronics VNQ600 Quad Channel High Side Solid State Relay Datasheet
Does the VNQ600 include thermal shutdown protection?
Yes, the device includes thermal shutdown protection to protect against overload.
From: STMicroelectronics VNQ600 Quad Channel High Side Solid State Relay Datasheet
What is the maximum continuous output current per channel?
The maximum continuous output current for each channel is 15 A.
From: STMicroelectronics VNQ600A Quad Channel High Side Solid State Relay Datasheet
Does the device have built-in thermal protection?
Yes, the device features automatic thermal shut-down and restart to protect against overload.
From: STMicroelectronics VNQ600A Quad Channel High Side Solid State Relay Datasheet
