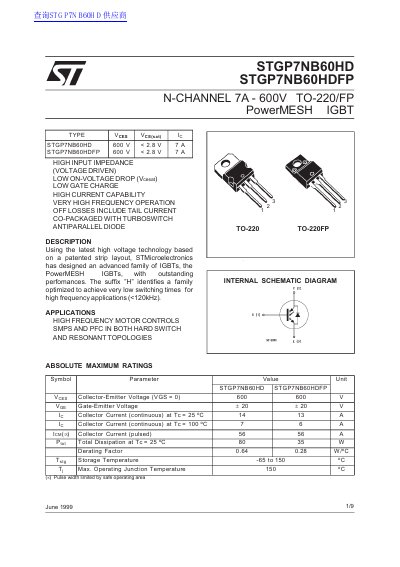

STMicroelectronics STGP7NB60HD/FP PowerMESH IGBT Datasheet
This document describes the STMicroelectronics PowerMESH™ IGBT family, specifically models STGP7NB60HD and STGP7NB60HDFP. These N-channel 7A - 600V devices are optimized for high frequency applications under 120kHz due to their very low switching times.
Read onlineSTMicroelectronics STGP7NB60H specifications
| Collector Current (continuous) at Te = 25 °C | 14 A / 13 A |
|---|---|
| Total Dissipation at Te = 25 °C | 80 W / 35 W |
| Package Type | TO-220/FP |
Source: STMicroelectronics STGP7NB60HD/FP PowerMESH IGBT Datasheet
All STMicroelectronics STGP7NB60H documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 150 °C.
From: STMicroelectronics STGP7NB60HD/FP PowerMESH IGBT Datasheet
What is the maximum collector-emitter voltage rating for this device?
The maximum collector-emitter voltage rating is 600 V.
From: STMicroelectronics STGP7NB60HD/FP PowerMESH IGBT Datasheet
What are the applications for the STGP7NB60H?
The device is optimized for high frequency motor controls and SMPS and PFC in both hard switch and resonant topologies.
From: STMicroelectronics STGP7NB60H N-Channel 7A-600V PowerMESH IGBT Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature is 150 °C.
From: STMicroelectronics STGP7NB60H N-Channel 7A-600V PowerMESH IGBT Datasheet
