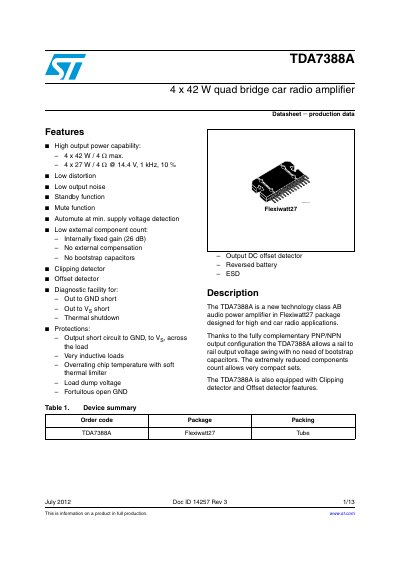

STMicroelectronics TDA7388A Quad Bridge Car Radio Amplifier Datasheet
The document describes the TDA7388A, a new technology class AB audio power amplifier in a Flexiwatt27 package. It is specifically designed for high-end car radio applications and features a fully complementary PNP/NPN output configuration that allows rail-to-rail output voltage swing without needing bootstrap capacitors.
The device offers high output power capability (4x42W at 14V) with low distortion and noise. Key features include internal gain fixing, clipping detection, offset detection, and various protection mechanisms such as thermal shutdown, short-circuit protection, and load dump voltage protection.
STMicroelectronics TDA7388 specifications
| Output power (4 Ohm) | 4 x 42 W / 4 max. |
|---|---|
| Package type | Flexiwatt27 |
| Operating temperature range | -40 to 105 °C |
Source: STMicroelectronics TDA7388A Quad Bridge Car Radio Amplifier Datasheet
All STMicroelectronics TDA7388 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power of the TDA7388A?
The amplifier provides a maximum output of 4 x 42W into a 4 ohm load.
From: STMicroelectronics TDA7388A Quad Bridge Car Radio Amplifier Datasheet
Does the TDA7388A require external bootstrap capacitors?
No, it does not require external compensation or bootstrap capacitors due to its internal output configuration.
From: STMicroelectronics TDA7388A Quad Bridge Car Radio Amplifier Datasheet
What is the maximum output power of the TDA7388?
The device provides a maximum output capability of 4x45W.
From: STMicroelectronics TDA7388 Quad Bridge Car Radio Amplifier Datasheet
What is the recommended minimum value for the SVR capacitor?
To serve both ripple rejection and pop optimization needs, the minimum recommended value is 10 pF.
From: STMicroelectronics TDA7388 Quad Bridge Car Radio Amplifier Datasheet
