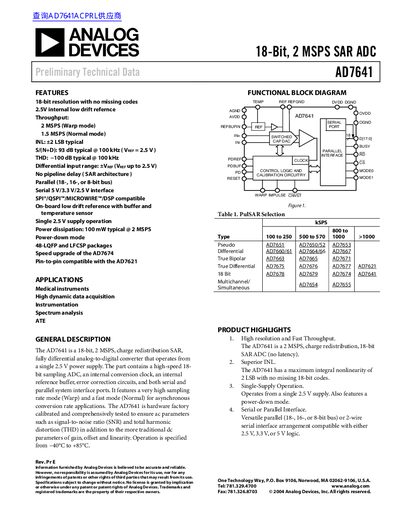

Analog Devices AD7641 Datasheet
The document describes the AD7641, a fully differential analog-to-digital converter (ADC) with 18-bit resolution and no missing codes. It operates from a single 2.5 V power supply and offers two throughput modes: Warp mode at 2 MSPS and Normal mode at 1.5 MSPS.
The device includes an internal low-drift reference, error correction circuits, and both serial (SPI/QSPI/Microwire/DSP compatible) and parallel system interface ports. It is designed for applications such as medical instruments, high dynamic data acquisition, instrumentation, spectrum analysis, and automated test equipment (ATE).
Analog Devices AD7641 specifications
| Resolution | 18 Bits |
|---|---|
| Throughput Rate (Warp Mode) | 2 MSPS |
| Throughput Rate (Normal Mode) | 1.5 MSPS |
| Integral Linearity Error | +2 LSB typical |
| Signal-to-Noise Ratio | 93 dB typical @ 100 kHz |
| Total Harmonic Distortion | -100 dB typical @ 100 kHz |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices AD7641 Datasheet
All Analog Devices AD7641 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the two throughput modes of the AD7641?
The device features a high-speed Warp mode at 2 MSPS and a fast Normal mode at 1.5 MSPS.
What is the supply voltage requirement?
The AD7641 operates from a single 2.5 V power supply.
What is the maximum sampling rate of the AD7641?
The AD7641 can sample at up to 2 MSPS in wideband warp mode.
What supply voltage does the AD7641 require?
The device operates from a single 2.5 V supply (AVDD = DVDD = 2.5 V).
What is the maximum sampling rate of the AD7641?
The AD7641 can sample at up to 2 MSPS in wideband warp and warp modes.
How much power does the AD7641 consume with the internal reference?
Typical power dissipation is 75 mW at 2 MSPS when the internal reference is used.
