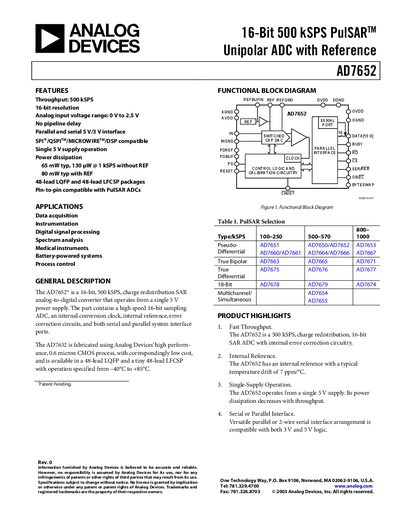

Analog Devices AD7652 Datasheet
The AD7652 is a 16‑bit, 500 kSPS PulSAR™ ADC that operates from a single 5 V supply. It offers both parallel and serial (SPI/QSPI/MICROWIRE/DSP) interfaces and includes an internal reference.
The device is available in 48‑lead LQFP and LFCSP packages, supports an input range of 0 V to 2.5 V, and is specified for temperatures from –40 °C to +85 °C. Detailed specifications, timing diagrams, pin descriptions, and absolute maximum ratings are provided.
Analog Devices AD7652 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput | 500 kSPS |
| Input Voltage Range | 0 V to 2.5 V |
| Power Dissipation (typical, no REF) | 65 mW |
| Supply Voltage | 5 V single supply |
Source: Analog Devices AD7652 Datasheet
All Analog Devices AD7652 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the AD7652?
The AD7652 accepts an analog input voltage range from 0 V to 2.5 V.
What is the maximum sampling rate of the AD7652?
The AD7652 can sample at up to 500 kSPS.
What is the analog input voltage range of the AD7652?
The AD7652 accepts an analog input from 0 V to 2.5 V.
From: Analog Devices AD7652 16‑Bit 500 kSPS PulSAR Unipolar ADC Datasheet
What supply voltage does the AD7652 require?
It operates from a single 5 V supply.
From: Analog Devices AD7652 16‑Bit 500 kSPS PulSAR Unipolar ADC Datasheet
What is the maximum sampling rate of the AD7652?
The AD7652 can sample at up to 500 kSPS.
Does the AD7652 have an internal reference?
Yes, it includes an internal reference with a typical voltage of 2.5 V and a temperature drift of 7 ppm/°C.
