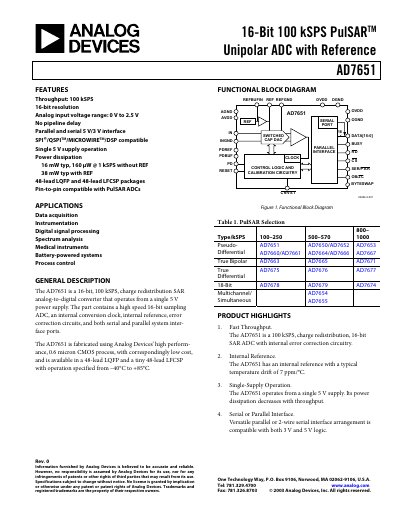

Analog Devices AD7651 16‑Bit 100 kSPS ADC Datasheet
The AD7651 is a 16‑bit, charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It offers 100 kSPS throughput, an internal 2.5 V reference, and both parallel and serial (SPI/QSPI/MICROWIRE) interfaces, making it suitable for data‑acquisition, instrumentation, and DSP applications.
Available in 48‑lead LQFP and 48‑lead LFCSP packages, the device operates from –40 °C to +85 °C and supports a unipolar input range of 0 V to 2.5 V. Application notes describe how to extend the input range for bipolar or wider voltage spans.
Analog Devices AD7651 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput | 100 kSPS |
| Analog Input Voltage Range | 0 V to 2.5 V |
| Internal Reference Voltage | 2.48 V – 2.52 V (typ 2.5 V) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 48‑lead LQFP, 48‑lead LFCSP |
All Analog Devices AD7651 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD7651?
The AD7651 provides a 16‑bit resolution.
What is the maximum sampling rate of the AD7651?
It can sample at up to 100 kSPS.
What is the maximum sampling rate of the AD7651?
The AD7651 can sample at up to 100 kSPS.
What supply voltage does the AD7651 require?
It operates from a single 5 V supply (AVDD 4.75‑5.25 V, DVDD 4.75‑5.25 V).
