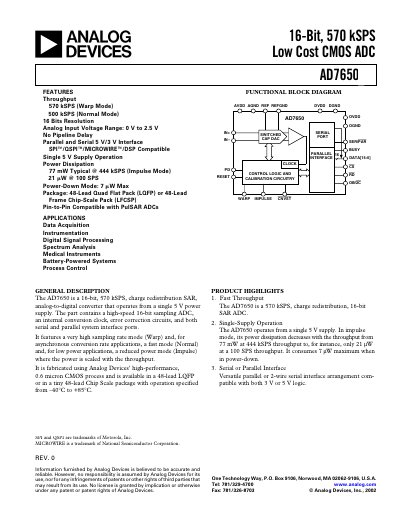

Analog Devices AD7650 Datasheet
The AD7650 is a 16‑bit, 570 kSPS charge‑redistribution SAR analog‑to‑digital converter that operates from a single 5 V supply. It offers both parallel and serial (SPI/QSPI/MICROWIRE) interfaces, multiple operating modes (Warp, Normal, Impulse) and low power consumption that scales with throughput.
Available in 48‑lead LQFP and 48‑lead LFCSP packages, the device operates from –40 °C to +85 °C and is suited for data‑acquisition, instrumentation, DSP, spectrum analysis, medical instruments, battery‑powered systems and process control.
Analog Devices AD7650 specifications
| Resolution | 16 Bits |
|---|---|
| Maximum Throughput (Warp Mode) | 570 kSPS |
| Analog Input Voltage Range | 0 V to 2.5 V |
| Power Dissipation (Typical, 444 kSPS) | 77 mW |
| Supply Voltage | 5 V single‑supply |
| Package Options | 48‑lead LQFP or 48‑lead LFCSP |
| Input Bandwidth | 18 MHz |
| Signal‑to‑Noise Ratio (100 kHz) | 87 dB |
Source: Analog Devices AD7650 Datasheet
All Analog Devices AD7650 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7650?
The AD7650 can sample at up to 570 kSPS in Warp mode.
What supply voltage does the AD7650 require?
It operates from a single 5 V supply (AVDD = DVDD = 5 V).
What supply voltage does the AD7650 require?
It operates from a single 5 V supply.
How much power does the AD7650 consume in power‑down mode?
The power‑down current is a maximum of 7 pW.
