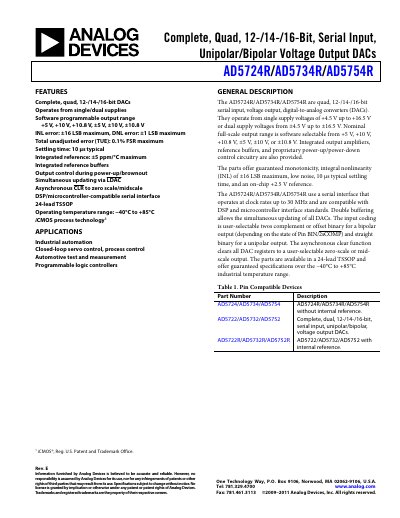

Analog Devices AD5724R/AD5734R/AD5754R Datasheet
The AD5724R/AD5734R/AD5754R are quad, 12-/14-/16-bit serial input, voltage output digital-to-analog converters (DACs) manufactured by Analog Devices. They operate from single or dual supply voltages and feature software-programmable output ranges of +5 V, +10 V, or +10.8 V. The devices include integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry.
Read onlineAnalog Devices AD5724 specifications
| Resolution | 12 Bits (AD5724R), 14 Bits (AD5734R), 16 Bits (AD5754R) |
|---|---|
| Total Unadjusted Error (TUE) | +0.1% FSR maximum |
| Integral Nonlinearity (INL) | +16 LSB maximum |
| Differential Nonlinearity (DNL) | +1 LSB maximum |
| Settling time | 10 us typical |
| Operating temperature range | -40°C to +85°C |
| Supply Voltage | 4.5 V to 16.5 V (single/dual) |
| Package | 24-lead TSSOP |
All Analog Devices AD5724 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5724R/AD5734R/AD5754R?
The AD5724R is 12-bit, the AD5734R is 14-bit, and the AD5754R is 16-bit.
What are the available output voltage ranges?
The output range is software selectable from +5 V, +10 V, or +10.8 V.
What supply voltage range do the AD5724/AD5734/AD5754 support?
They operate from single‑supply voltages of +4.5 V up to +16.5 V, or from dual supplies within the same range.
What is the operating temperature range for these devices?
They are rated for industrial operation from –40 °C to +85 °C.
What is the output voltage range of the devices?
The output can swing from -10.8 V to +10.8 V.
What is the maximum INL error?
The integral nonlinearity is limited to ±16 LSB.
