Featured Digital manuals

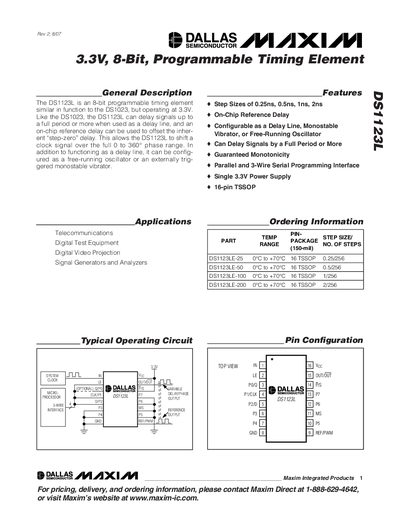

Maxim DS1123L Datasheet
The DS1123L is an 8‑bit programmable timing element that can delay signals up to a full period or more, providing phase adjustment over a 360° range. It can be programmed via an 8‑bit parallel interface or a 3‑wire serial interface, and can also operate as a monostable vibrator or an adjustable frequency oscillator.
The device operates from a single 3.3 V supply and is offered in four step‑size variants (0.25 ns to 2 ns). Electrical specifications include a supply voltage of +3.0 V to +3.6 V, input logic thresholds, and current ratings. Pin‑out details, timing diagrams, and application notes are provided for proper integration.
Covers: General Description · Absolute Maximum Ratings · Recommended DC Operating Conditions · DC Electrical Characteristics · AC Electrical Characteristics · Pin Description

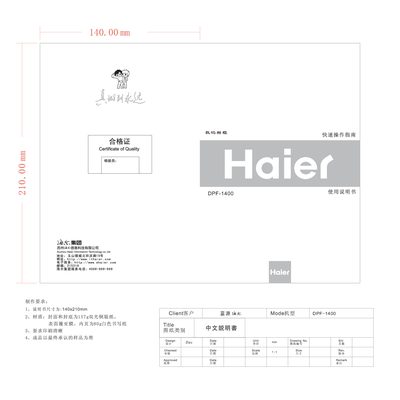

Haier DPF-1400 Digital Photo Frame User Manual
This manual introduces the Haier DPF-1400 digital photo frame, describing the front panel, remote control functions, and built‑in interfaces such as USB, SD and MMC slots. It includes step‑by‑step instructions for powering the device on and off, selecting media sources, and adjusting playback settings.
Safety warnings, product specifications, and a troubleshooting guide are provided to help users avoid electrical hazards, resolve common display or audio issues, and maintain the unit for long‑term reliable operation. This manual is written in Chinese.
Covers: Warning · Safety Guidelines · Introduction · Panel Description · Remote Control Usage · Built‑in Interfaces

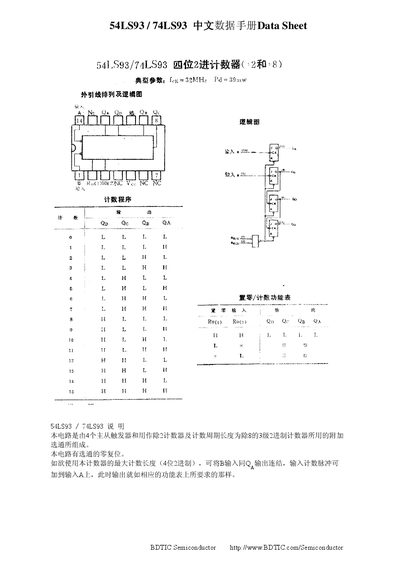

BDTIC Semiconductor 54LS93 / 74LS93 Data Sheet
The 54LS93 / 74LS93 is a 4‑bit binary counter built from four master‑slave flip‑flops. It can operate as a divide‑by‑2 counter and, with additional gating, as a divide‑by‑8 counter. The device includes a selectable reset function and allows the B input to be tied to Q for maximum counting length.
The data sheet lists typical parameters such as a 32 MHz clock frequency, supply voltage range of 4.5 V to 5.5 V, and operating temperature from 0 °C to 75 °C. Electrical characteristics for output high/low currents, input thresholds, and timing specifications are also provided. This manual is written in Chinese.
Covers: Typical Parameters · Pin Configuration · Operating Conditions · Electrical Characteristics · Timing Diagrams · Reset Function

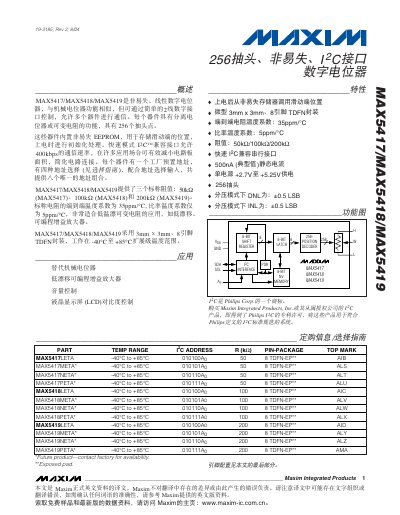

Maxim MAX5417/MAX5418/MAX5419 Digital Potentiometer Datasheet
The MAX5417, MAX5418, and MAX5419 are 256‑tap, non‑volatile digital potentiometers that communicate via an I²C/SMBus interface. They are offered in a 3 mm × 3 mm TDFN‑EP package and operate from 2.7 V to 5.25 V.
These devices provide low‑power standby operation (≈500 nA), selectable tap resistance values (50 kΩ, 100 kΩ, 200 kΩ), and precise linearity (±0.5 LSB INL/DNL). Typical applications include LCD contrast control, programmable filters, and adjustable voltage references.
Covers: Absolute Maximum Ratings · Electrical Characteristics · Dynamic Characteristics · Pin Configuration · Message Format · Applications
Latest Digital manuals
Maxim DS1123L Datasheet
Datasheet 14 pages · 173 KB · ENThe Maxim DS1123L is an 8‑bit programmable timing element operating at 3.3 V, offering delay line, monostable vibrator and oscillator functions.
Haier DPF-1400 Digital Photo Frame User Manual
User Manual 7 pages · 1.7 MB · ZHThe Haier DPF-1400 digital photo frame user manual provides setup, operation, safety guidelines, specifications, and troubleshooting instructions.
BDTIC Semiconductor 54LS93 / 74LS93 Data Sheet
Datasheet 3 pages · 401 KB · ZHThe BDTIC Semiconductor 54LS93 / 74LS93 data sheet provides electrical characteristics, recommended operating conditions, and pin functions for the 4‑bit…
Maxim MAX5417/MAX5418/MAX5419 Digital Potentiometer Datasheet
Datasheet 32 pages · 979 KB · ENThe Maxim MAX5417, MAX5418, and MAX5419 are 256‑tap digital potentiometers with I²C interface, low standby current, and detailed electrical specifications.
Philips 7FF2FPA Digital Photo Frame User Manual
User Manual 15 pages · ZHThe Philips 7FF2FPA digital photo frame user manual provides setup, connection, language selection, photo browsing, copying, deleting, and timer functions.
Transcend PF710 Digital Photo Frame User Manual
User Manual 30 pages · ZHThe Transcend PF710 digital photo frame user manual provides setup, operation, and troubleshooting instructions in Chinese.
