Start here

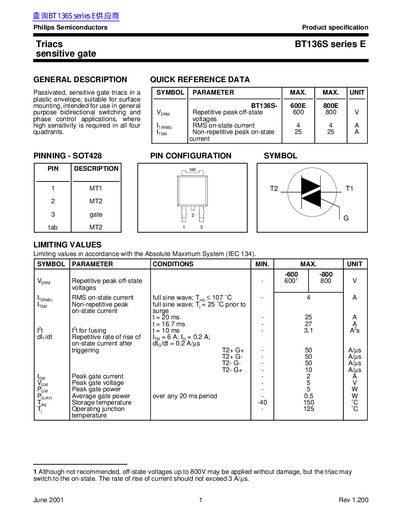

Philips BT136S Series E Triac Datasheet
This document is a product specification datasheet for the Philips BT136S series E triacs. These are passivated, sensitive gate devices in a plastic envelope suitable for surface mounting (SOT428). They are intended for general-purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.
The datasheet provides quick reference data including maximum off-state voltages of 600V or 800V, on-state currents up to 4A, and non-repetitive peak currents of 25A. It details limiting values, static and dynamic characteristics such as gate trigger current and voltage, thermal resistances, and typical application curves for dissipation and switching times.
Philips BT136S specifications
| Gate trigger current (T2+ G+) | 2.0 mA |
|---|---|
| On-state voltage (F=5A) | 1.4 V |
| Package type | SOT428 |
All Philips BT136S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Philips BT136S Series E Triac Datasheet 6 p
- Philips BT136S Series D Logic Level Triac Datasheet 6 p
- Philips Semiconductors BT136S Series Triac Datasheet 6 p
- Philips BT136S/BT136M Series Triacs Product Specification 6 p
- Philips Semiconductors BT136S/BT136M Series D Triac Product Specification 6 p
- Philips BT136S/BT136M Series Triac Datasheet 6 p
Questions answered in these manuals
What are the maximum RMS on-state currents for this triac?
The device supports a maximum RMS on-state current of 4 A.
What are typical applications for the BT136S series?
Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
Is the BT136S series suitable for surface mounting?
Yes, these are passivated triacs in a plastic envelope suitable for surface mounting.
Is the BT136S series suitable for surface mounting?
Yes, they are glass passivated triacs in a plastic envelope suitable for surface mounting.
From: Philips BT136S/BT136M Series Triacs Product Specification
What is the maximum gate trigger current for the BT136S series?
The maximum gate trigger current (IGT) for the BT136S series is 50 mA.
From: Philips BT136S/BT136M Series Triacs Product Specification
How much does the component weigh?
The net mass of the device is 1.1 g.
From: Philips Semiconductors BT136S/BT136M Series D Triac Product Specification
