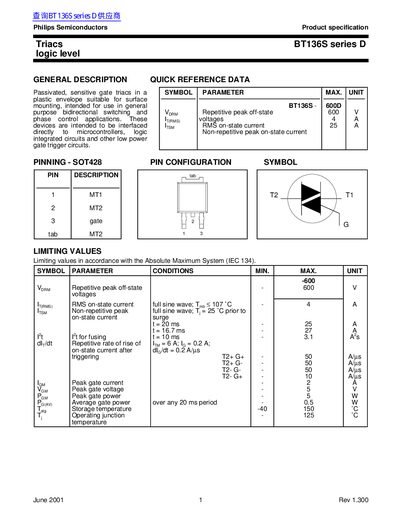

This document is the specification of BT136S series D logic level triacs produced by Philips Semiconductors. These triacs have a 600 V repetitive peak off-state voltage, a 4 A RMS rated current and a 25 A non-repetitive peak on-state current, and are suitable for general bidirectional switching and phase control applications.
This datasheet describes the BT136S series D, which are passivated, sensitive gate triacs in a plastic envelope suitable for surface mounting. These devices are designed for general-purpose bidirectional switching and phase control applications, intended to be interfaced directly to microcontrollers and low power gate trigger circuits.
| Gate trigger current (T2+ G+) | 2.0 mA |
|---|---|
| On-state voltage (F=5A) | 1.4 V |
| Package type | SOT428 |
