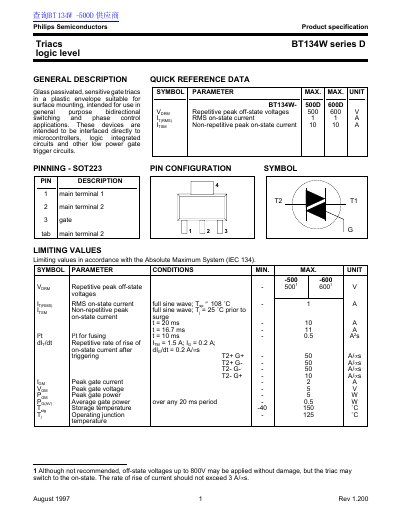

Philips BT134W Series D Logic Level Triac Product Specification
This document is a product specification for the Philips BT134W series D logic level triacs. These glasspassivated devices are designed in a plastic envelope suitable for surface mounting and are intended for general purpose bidirectional switching and phase control applications.
The triacs are specifically engineered to be interfaced directly with microcontrollers, logic integrated circuits, and other low power gate trigger circuits. The datasheet provides comprehensive data including quick reference values, limiting values, static and dynamic characteristics, thermal resistances, and mechanical mounting instructions.
Philips BT134W specifications
| Repetitive peak off-state voltages (VDRM) | 500 / 600 V |
|---|---|
| RMS on-state current (IT(RMS)) | 1 A |
| Storage temperature (Tstg) | -40 °C to +150 °C |
| Package type | SOT223 |
