This document describes the features and characteristics of Philips Semiconductors' Triacs BT136S series and BT136M series products, which are suitable for surface mounting and intended for general purpose bidirectional switching and phase control voltage applications.

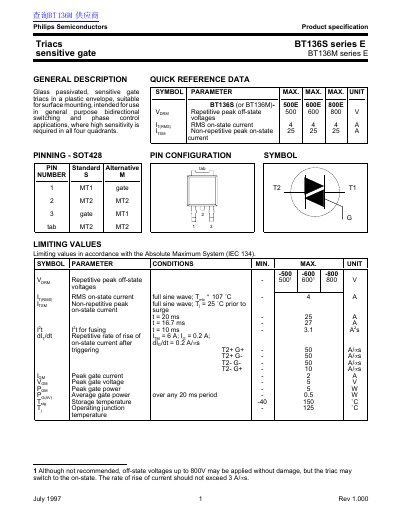

This datasheet provides technical specifications for the Philips BT136S and BT136M series of sensitive gate triacs. These devices are glass passivated and housed in a plastic envelope suitable for surface mounting. They are intended for use in general purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.
| Package Type | SOT428 |
|---|---|
| Maximum RMS On-State Current (IT(RMS)) | 4 A |
| Storage Temperature (Tstg) | -40 to 150 °C |
| Net Mass | 1.1 g |
The maximum RMS on-state current is 4 A.
The maximum operating junction temperature is 125 °C.
The net mass of the device is 1.1 g.
