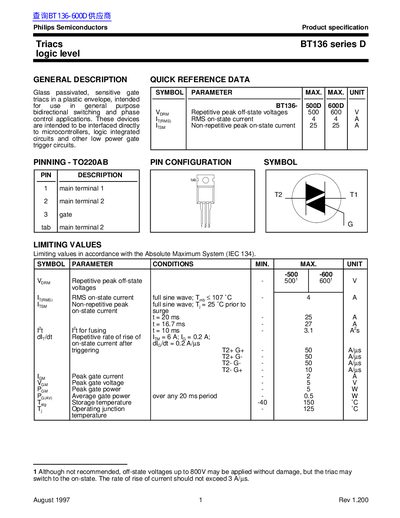

Philips Semiconductors BT136 Series D Triac Product Specification
This document is a product specification datasheet for the Philips Semiconductors BT136 series D, which are glass passivated, sensitive gate triacs in a plastic envelope. These devices are intended for general purpose bidirectional switching and phase control applications, specifically designed to be interfaced directly with microcontrollers, logic integrated circuits, and other low power gate trigger circuits.
Read onlinePhilips BT136 specifications
| Repetitive peak off-state voltage | 600 V |
|---|---|
| RMS on-state current | 4 A |
| Non-repetitive peak on-state current | 25 A |
| Thermal resistance junction to ambient | 60 K/W |
| Gate trigger current (T2+ G+) | 5 mA |
| On-state voltage | 1.70 V |
Source: Philips Semiconductors BT136 Series D Logic Level Triac Datasheet
