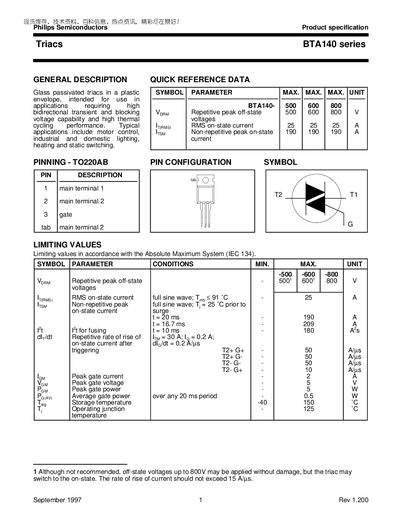

Philips BTA140 Series Datasheet
The BTA140 series triacs are glass‑passivated devices in a TO‑220AB package, intended for applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical uses include motor control, industrial and domestic lighting, heating and static switching.
The datasheet lists electrical limits such as a repetitive peak off‑state voltage of 800 V, RMS on‑state current of 25 A, and non‑repetitive peak on‑state current of 190 A. Thermal characteristics include a full‑cycle thermal resistance of 1.0 K/W and a storage temperature range of –40 °C to 150 °C. Mechanical dimensions and pin configuration are also provided.
Philips BTA140 specifications
| Repetitive peak off‑state voltage | 800 V |
|---|---|
| RMS on‑state current | 25 A |
| Non‑repetitive peak on‑state current | 190 A |
| Thermal resistance (junction‑to‑mounting base, full cycle) | 1.0 K/W |
| Storage temperature range | -40 °C to 150 °C |
All Philips BTA140 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the thermal resistance of the BTA140 for a full thermal cycle?
The full‑cycle thermal resistance is 1.0 K/W.
What storage temperature range is specified for the BTA140?
The device can be stored between –40 °C and 150 °C.
What is the maximum off‑state voltage for the BTA140 series?
The maximum repetitive peak off‑state voltage is 800 V.
What is the RMS on‑state current rating?
The RMS on‑state current is 25 A.
