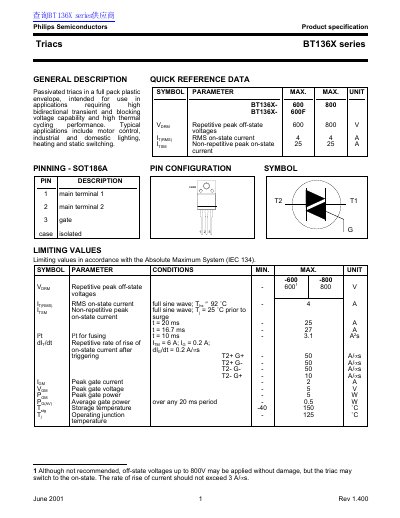

Philips BT136X Series Triac Product Specification
This document is a product specification datasheet for the Philips BT136X series of triacs. These are passivated devices in a full pack plastic envelope designed for high bidirectional transient and blocking voltage capability, as well as high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
Read onlinePhilips BT136X specifications
| Repetitive peak off-state voltages | 600 V |
|---|---|
| RMS on-state current | 4 A |
| Non-repetitive peak on-state current | 25 A |
All Philips BT136X documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum RMS on-state current for the BT136X series?
The maximum RMS on-state current is 4 A.
What are the maximum repetitive peak off-state voltages for this triac?
The device supports a maximum repetitive peak off-state voltage of 600 V.
What is the maximum RMS on-state current rating for these triacs?
The maximum RMS on-state current is rated at 4 A.
What is the maximum gate trigger current?
The peak gate current (Ion) must not exceed 2 A.
From: Philips Semiconductors BT136X Series E Triac Datasheet
What is the maximum storage temperature for this triac?
The maximum storage temperature is 150 °C.
From: Philips Semiconductors BT136X Series E Triac Datasheet
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tj) is 125 °C.
