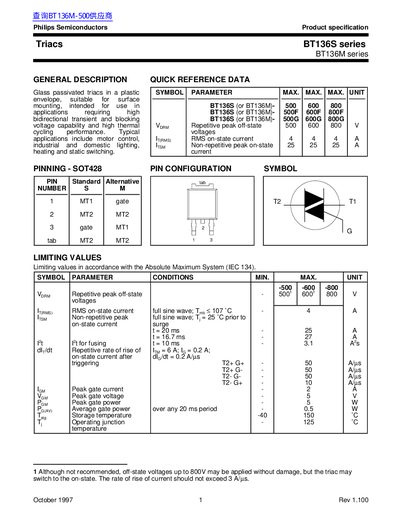

This document is a product specification for Philips Semiconductors Triacs BT136S series and BT136M series
This document is a product specification for the BT136S and BT136M series of triacs. These are glass passivated triacs in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
| Package Type | SOT428 |
|---|---|
| RMS On-State Current | 4 A |
| Operating Junction Temperature | 125 °C |
| Storage Temperature | -40 to 150 °C |
| Net Mass | 1.1 g |
Yes, they are glass passivated triacs in a plastic envelope suitable for surface mounting.
The maximum gate trigger current (IGT) for the BT136S series is 50 mA.
