This document describes the features and characteristics of Philips Semiconductors' Triacs BT136S series and BT136M series products. These products are suitable for surface mounting and are intended for general purpose bidirectional switching and phase control applications. They can be directly interfaced with microcontrollers, logic integrated circuits, and other low power gate trigger circuits.

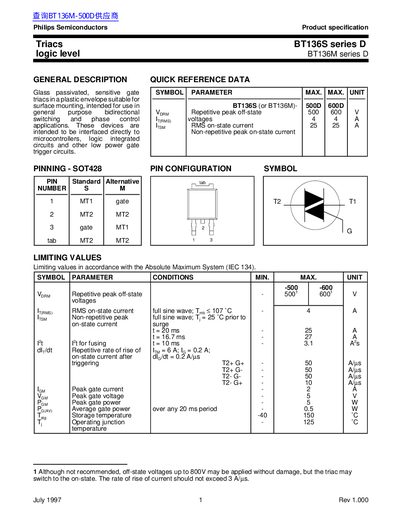

This document is a product specification sheet for the BT136S series D logic level and BT136M series D Triacs. The devices are glass passivated, sensitive gate triacs suitable for surface mounting in SOT428 packages. They are intended for use in general purpose bidirectional switching and phase control applications.
| Package Type | SOT428 |
|---|---|
| RMS on-state current (IT(RMS)) | 4 A |
| Operating junction temperature (Tj) | -125 ˚C |
| Gate trigger current (IGT) | 2.0 to 5 mA |
| On-state voltage (VT) | 1.4 to 1.7 V |
The net mass of the device is 1.1 g.
