The BT136S series is a Philips Semiconductors surface-mount triac with an rms on-state current of 4 A and a non-repetitive peak on-state current of 25 A. It is suitable for applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance, such as motor control, industrial and domestic lighting, heating, and static switching.

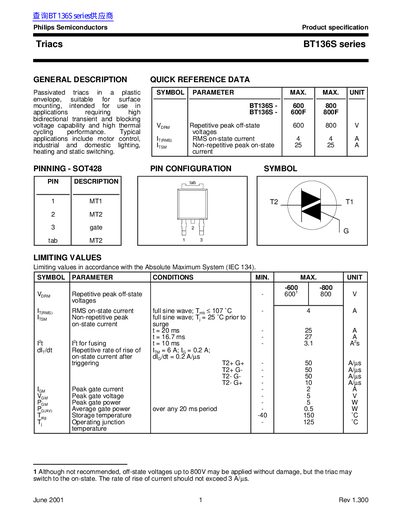

This document is a product specification datasheet for the Philips Semiconductors BT136S series of triacs. These are passivated devices in a plastic envelope designed for surface mounting, intended for applications requiring high bidirectional transient and blocking voltage capability along with high thermal cycling performance.
Typical application areas include motor control, industrial and domestic lighting, heating, and static switching. The datasheet provides general descriptions, quick reference data, limiting values, electrical characteristics (static and dynamic), mechanical dimensions, mounting instructions, and definitions of the product status.
| Repetitive peak off-state voltage (Vorm) | 600 V / 800 V |
|---|---|
| Package type | SOT428 |
Typical applications include motor control, industrial and domestic lighting, heating, and static switching.
Yes, these are passivated triacs in a plastic envelope suitable for surface mounting.
